Technical Specification of Hydraulic Agriculture Gearbox Speed Reducer
| Type | Max Speed (RPM) | Max Torque (N.m) | Ratio | Max Input Speed | Max Pressure (Mpa) | Max Braking Torque(N.m) | Starting Pressure(Mpa) | Hydraulic Motors | Weight (kg) |
| THZ005025DB | <20 | 5000 | 25 | <500 | 12.5 | 200 | <1.8 | 2K series | 80 |
| THZ008025DB | <20 | 8000 | 25 | <500 | 16 | 380 | <1.8 | 2K series | 100 |
| THZ008025D | <20 | 8000 | 25 | <500 | 16 | - | - | 2K series | 90 |
| THZ007025DB | <20 | 8000 | 25 | <500 | 16 | 380 | <1.8 | 2K series | 90 |
Advantages of CCMS Hydraulic Agriculture Planetary Gearbox Speed Reducer

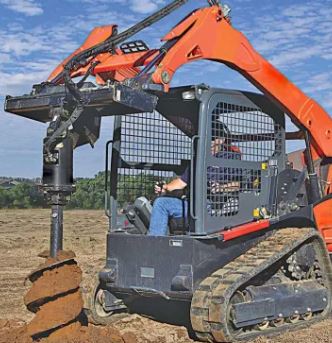

In the rapid hole formation operation of building foundation engineering, workers usually use auger construction machinery, which is widely applicable from the industry, such as municipal engineering, high-speed railway, construction engineering, forestry operations, etc. From the nature of the applicable soil layer, it is suitable for the use of auger for the filling soil layer, the clay layer, the sand layer, the frozen soil layer and other equipment can not drill into the formation. The most common application of auger is mainly in loose soil layers, sandy soil layers, and gravel layers. Auger is also divided into many kinds of construction methods, such as grouting replacement method, one-time pile construction method and so on. The main characteristics of auger are short working time, high hole forming efficiency, flexible, low noise, multi-purpose, simple operation and easy to learn.

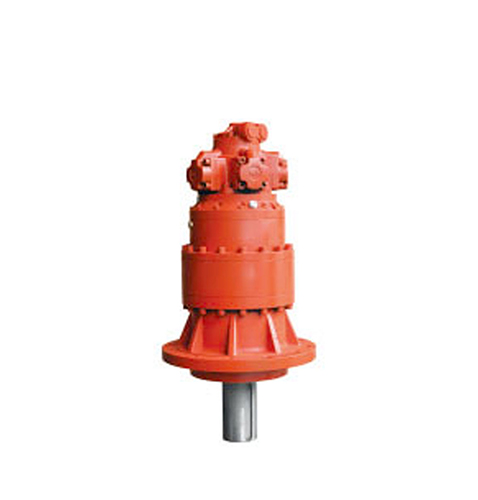

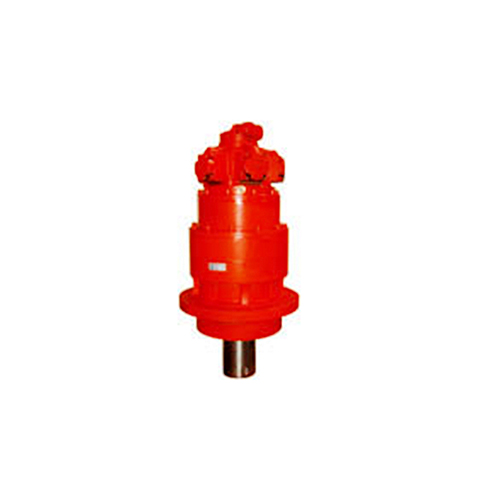

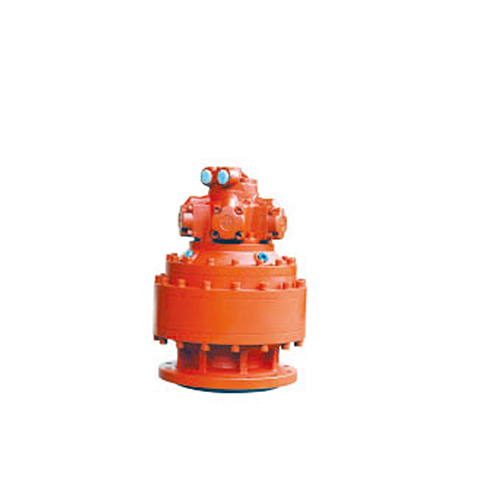

Abou the Hydraulic Agriculture Gearbox Speed Reducer
Our auger can be modified according to different parts, as long as you provide the corresponding parts, we can give you the appropriate plan to modify, and give you a brief introduction to the inside of the product. The motor imported from the United States is used in the interior of the power head to provide enough power, and the head is also our hot product. Provide power solutions for many power manufacturers at home and abroad, gear box adopts planetary two-layer transmission gear to provide power transmission, ensure normal operation of gear, increase applicability, solve the construction site of different soil in different places around the world, the output bearing adopts non-shifting shaft to ensure the accuracy of pile holes and service life. Bracket introduction: It plays the role of mobile lifting, and the unique universal wheel design can avoid damage to the fuselage caused by bad operation vibration during construction.
Short view of CCMS OEM Workshop for the Hydraulic Planetary Gearbox Speed Reducer
