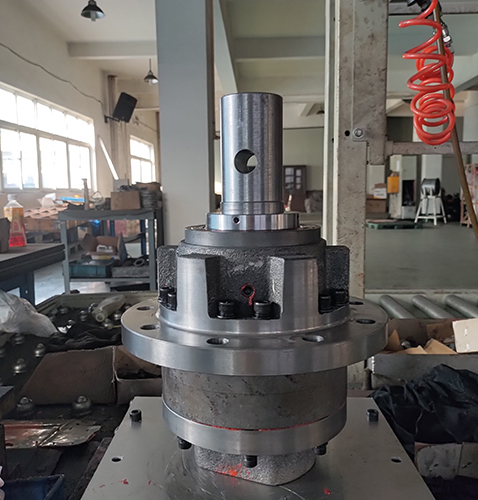

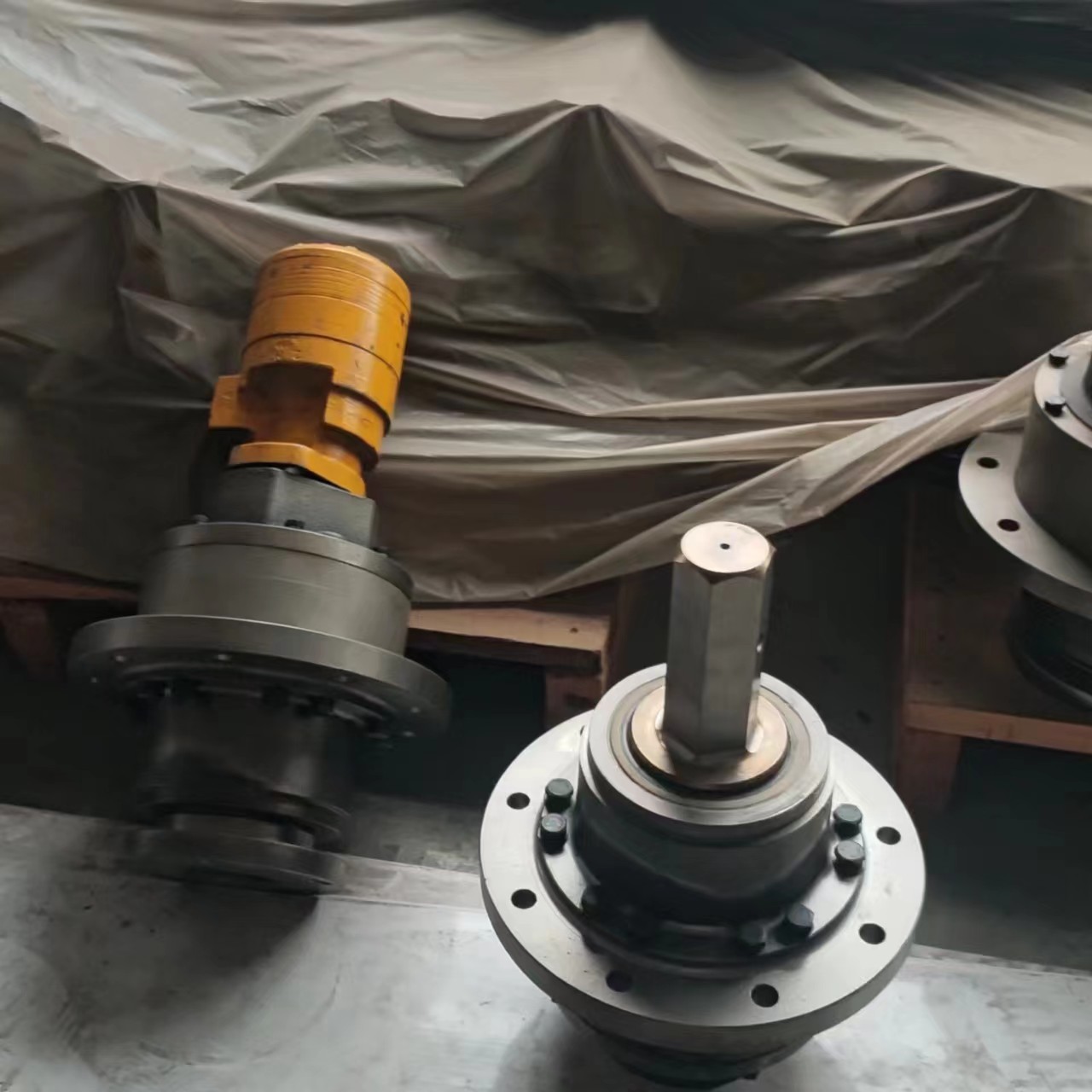

Specification of CCMS Hydraulic Planetary Gearbox
| Item No.: | OMH-6 | Drive Type: | Hydraulic Motor | Input Speed: | 95-630 rpm/min |
| Reduction Ration: | 4.5:1 | Torque Range: | 2000 Nm | Output shaft: | Flange |
| Unit Height: | 290mm | Unit Width: | 285mm | Unit Weight: | 39.40 kg |
| Max Oil Pressure: | 140 Bar | Trade Mark: | Customized/CCMS | Material: | Gray Iron |
| Oil Flow Range: | 80 LPM | Gear Shape: | Cylindrical Gears | Hydraulic Motor: | Optional |
Application of CCMS Hydraulic Planetary Gearbox

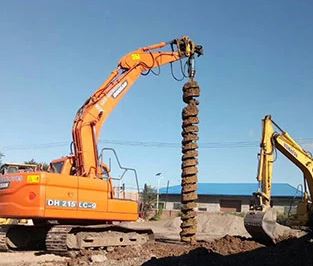

The main components of the auger are the mast column of the rig, the column is provided with a slide rail and a reducer that can slide up and down, the reducer is connected with the power input shaft and the power output shaft, the other end of the power input shaft is connected with the hydraulic motor, the other end of the power output shaft is connected with the drill rod, and the lower end of the drill rod is connected with the drill bit. The up and down movement of the drill pipe is realized by driving the reducer, which is more conducive to the downward acceleration and rapid drilling. The gear box can slide up and down the slide of the rig frame to ensure the perpendicularity of the drilling hole; The drill pipe is a spiral blade drill pipe, and the soil material can return to the ground along the blade during drilling. The power output shaft is a hollow core shaft, and the upper mouth of the core shaft can be connected with the concrete pouring equipment to carry out concrete pouring. The use and characteristics of Henan auger.
Features of CCMS Hydraulic Planetary Gearbox
Made of High Strength Material Gray Iron G220, this material are of high abrasive resistance, Low melting point, good fluidity, small shrinkage.
High load bearing and overload capacity, compact structure, low noise, long life.
Easy installation, operation and maintenance and High start-up and working efficiency.
With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works.
OEM Production Workshop of CCMS Hydraulic Gear Reducers
We CCMS is a OEM factory, accpet customerized. Most of our products are customerzation.The product include gear housing/boxes/reducers, Iron casting products, Aluminum products. Such as auto parts, agriculture parts, and other industrial parts.

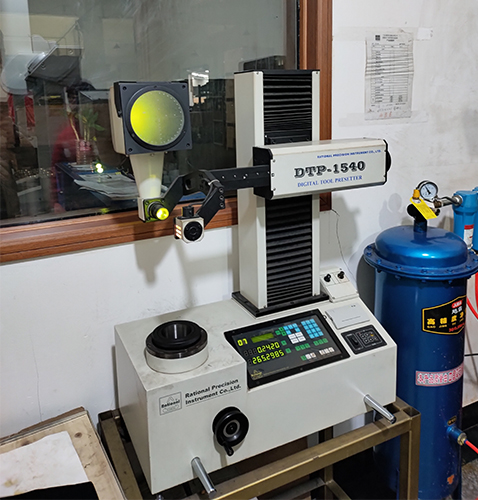

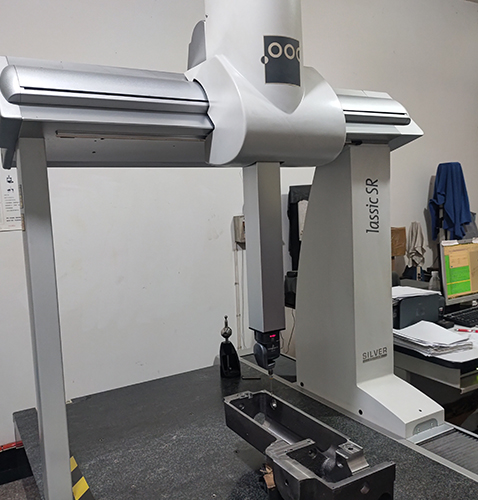

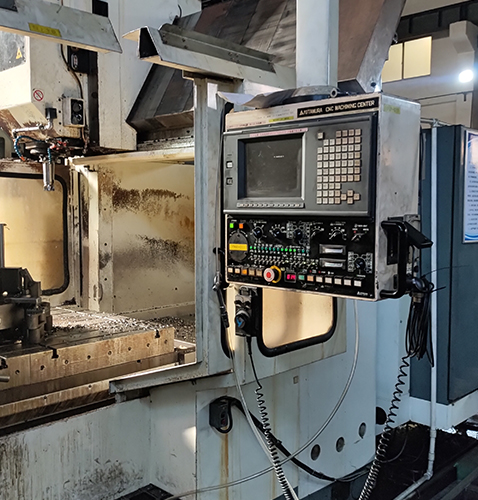

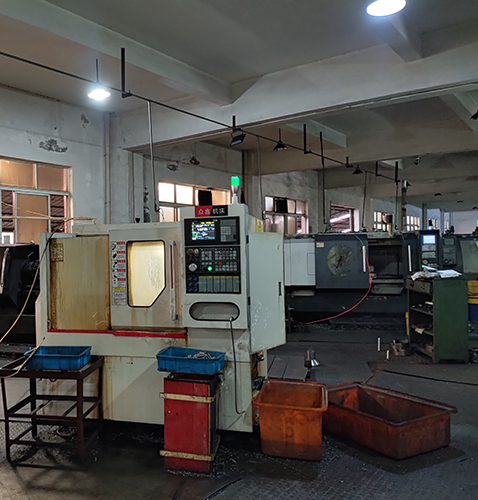

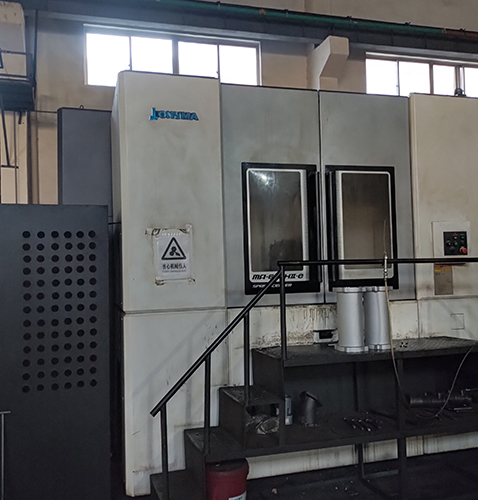

We have the most advanced testing facilities, such as spectral analyzer for rubber material chemical composition test, tensile strength testing machine, impact value tester and hardness meter, magnetic particle testing machine, sandblasting machine and heat treatment equipment. Besides, there are numerous advanced equipment in the precision machining workshop: have 23 sets CNC lathes, 10sets vertical CNC boring and milling center and one horizontal boring and milling center imported from Korea, two general milling machine, and two general lathes, one grinder, 10sets drilling and tap machines, two half automatic saw, and one Coordinate Measuring Machine (CMM), one Projector and one machining surface quality testing machine and one Mahr altitude instrument. Our product's tolerance can be controlled under 0.01mm. The testing machine's accuracy is within 0.005mm. ISO9000 has been executed.
FAQ:
Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.
Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.
Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
