Specification of OMH Series Hydraulic Planetary Gearbox Reducers
| Type | Input Speed (RPM/Min) | Reduction Ratio | Torque Range (Nm) | Output shaft | Unit Weight | Unit Width | Unit Weight (kg) | |
OMH-3 | 95~630 | 3.5:1 | 2000 | SAE Flange | 2" Hex | 315mm | 170mm | 20.25kg |
| OMH-4 | 95~630 | 3.75:1 | 2000 | SAE Flange | 2" Hex | 330mm | 240mm | 28.35kg |
| OMH-5 | 95~630 | 3.86:1 | 2000 | SAE Flange | 2" Hex | 350mm | 245mm | 36.65kg |
| OMH-6 | 95~630 | 4.5:1 | 2000 | SAE Flange | 2" Hex | 395mm | 280mm | 38.15kg |
| OMH-6-1 | 95~630 | 4.5:1 | 2000 | SAE Flange | Flange | 290mm | 285mm | 39.40kg |
About OMH Series Hydraulic Planetary Gearbox Reducers
In the rapid hole formation operation of building foundation engineering, workers usually use auger construction machinery, which is widely applicable from the industry, such as municipal engineering, high-speed railway, construction engineering, forestry operations, etc. From the nature of the applicable soil layer, it is suitable for the use of auger for the filling soil layer, the clay layer, the sand layer, the frozen soil layer and other equipment can not drill into the formation. The most common application of auger is mainly in loose soil layers, sandy soil layers, and gravel layers. Auger is also divided into many kinds of construction methods, such as grouting replacement method, one-time pile construction method and so on. The main characteristics of auger are short working time, high hole forming efficiency, flexible, low noise, multi-purpose, simple operation and easy to learn.

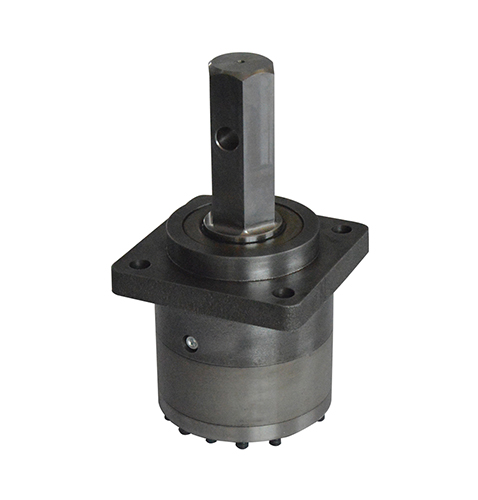

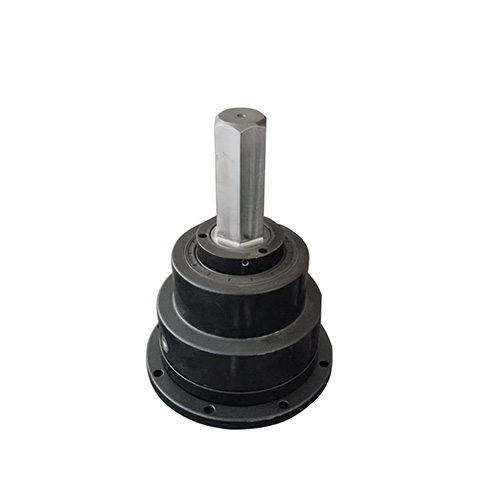

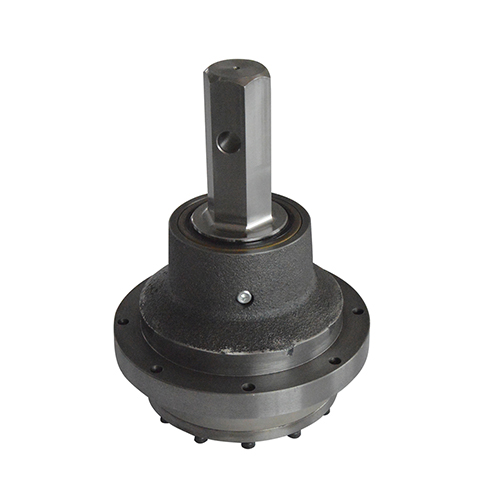

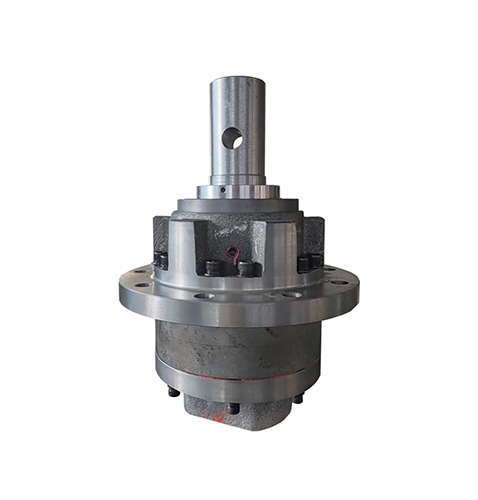

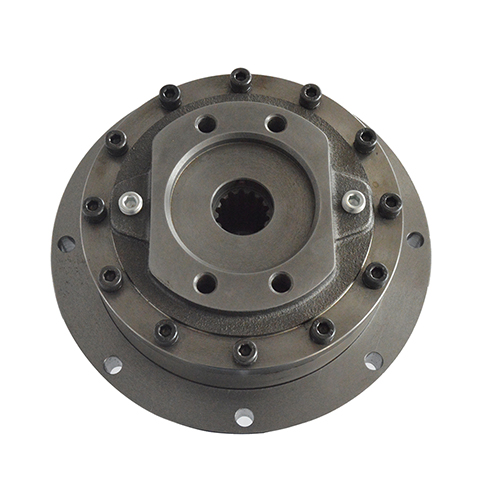

OMH-3 Gearbox OMH-4 Gearbox OMH-5 Gearbox

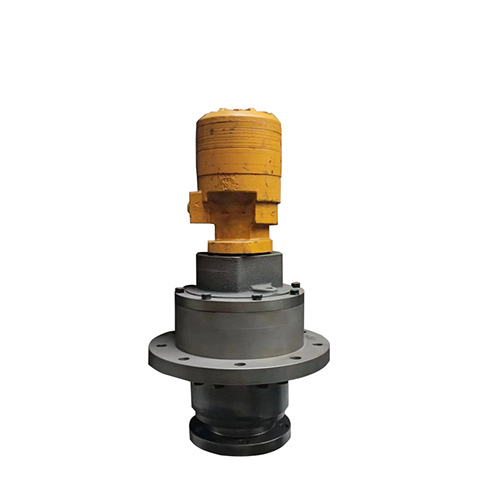

OMH-6 Gearbox Gearbox with Motors Spare Parts

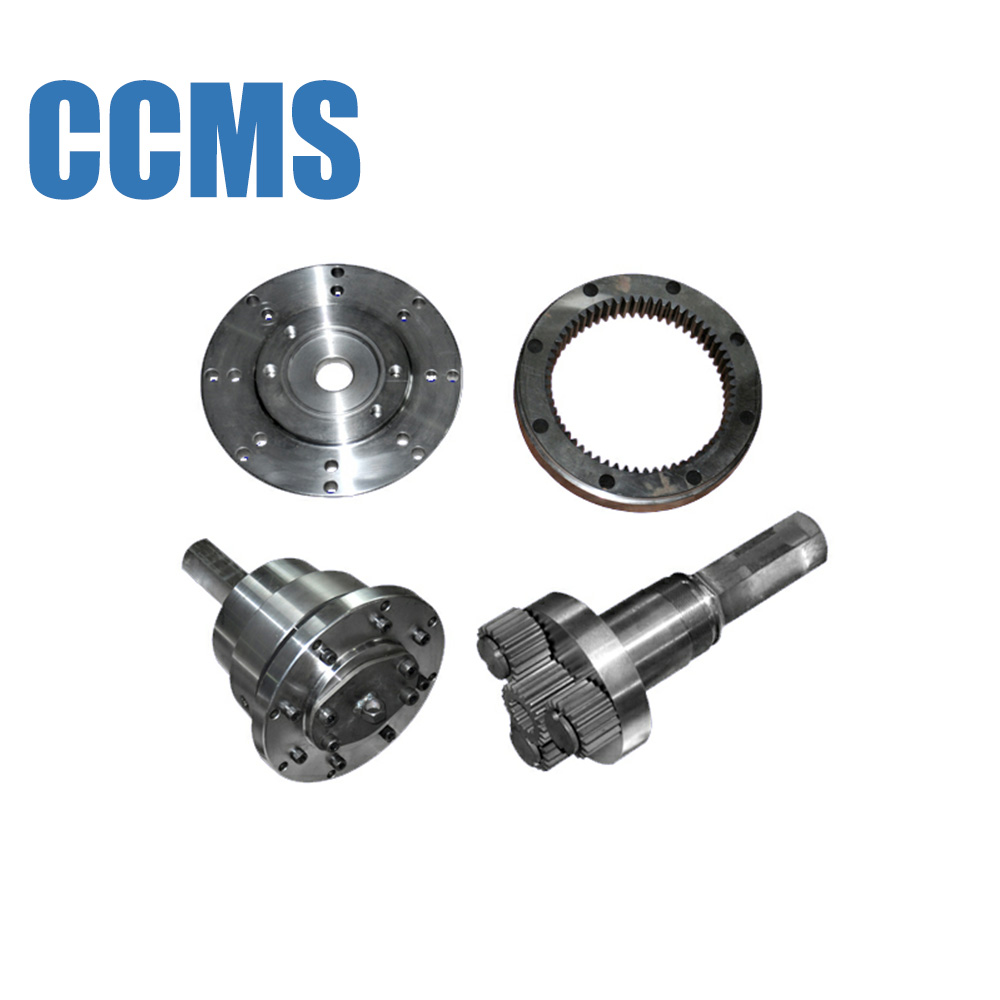

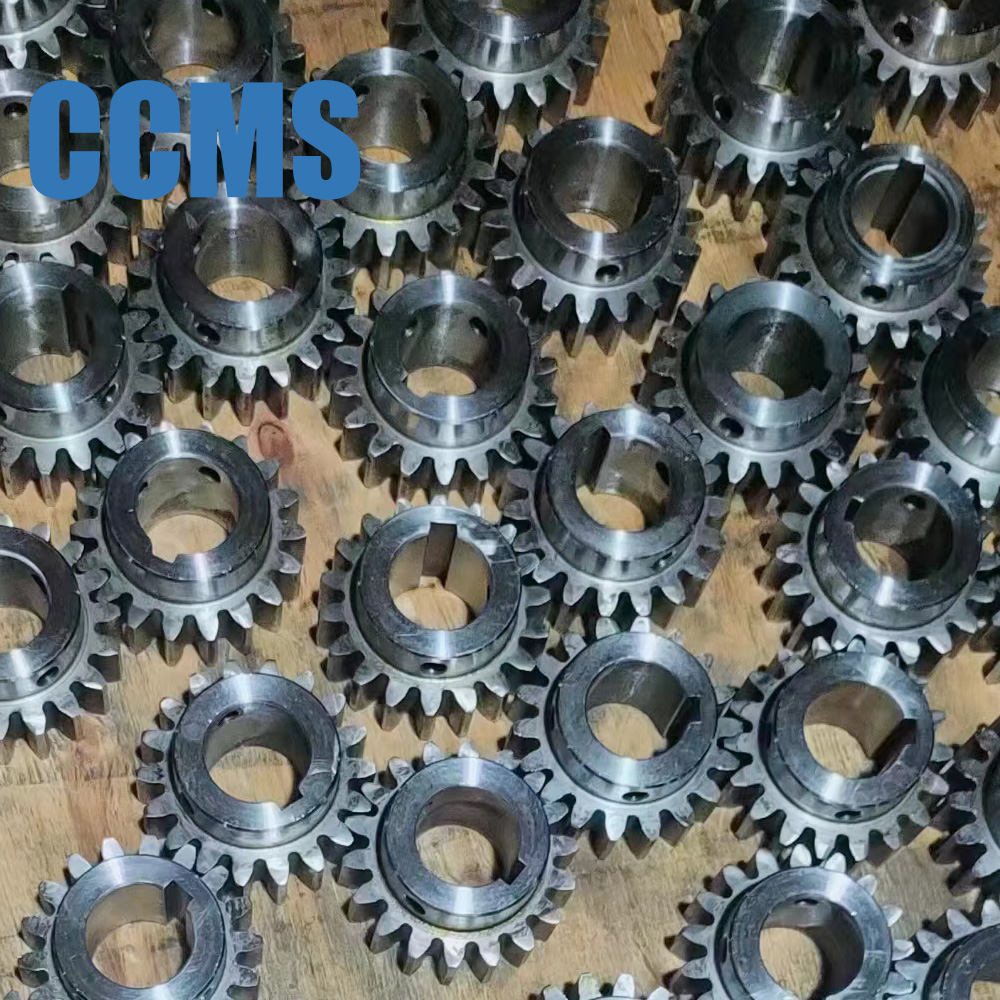

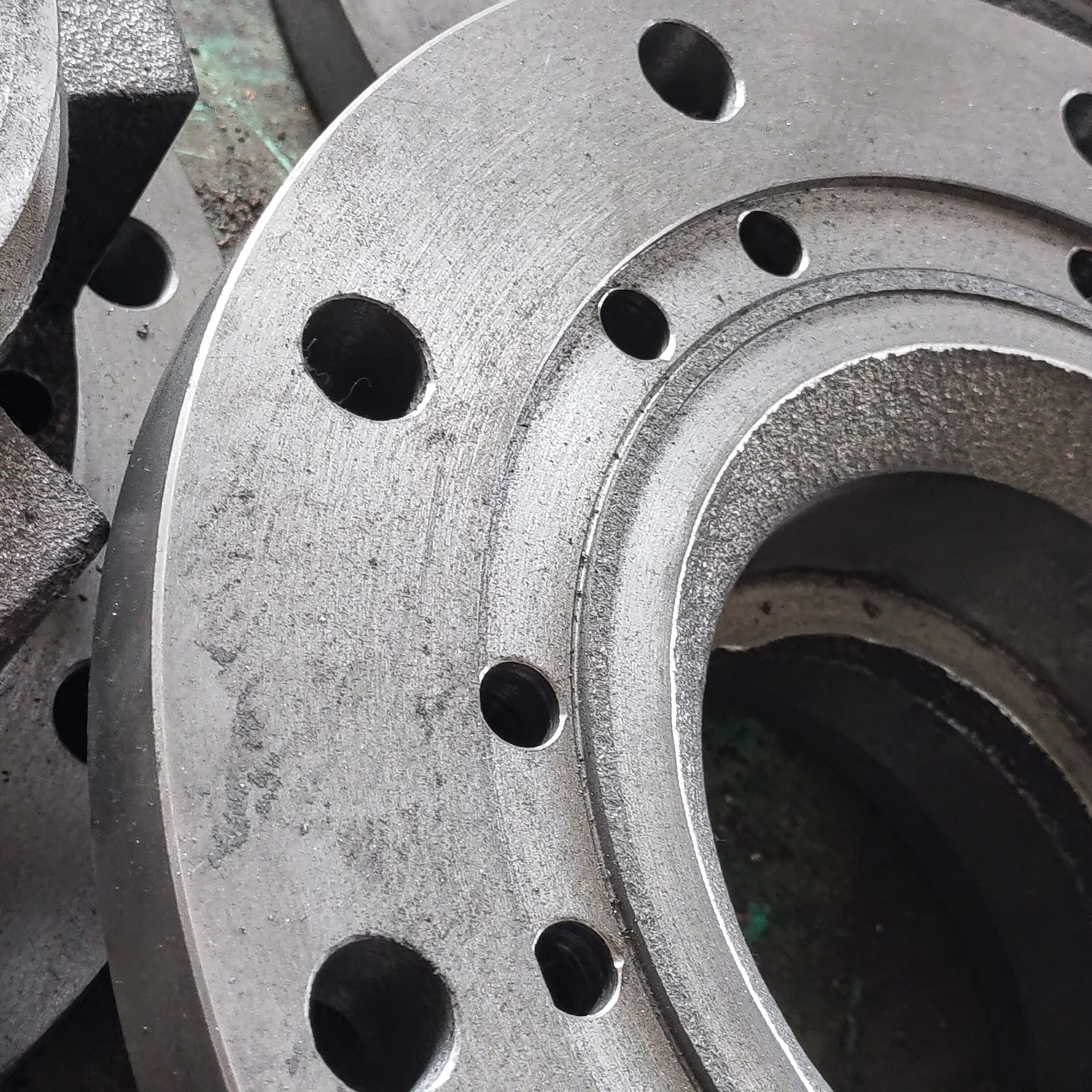

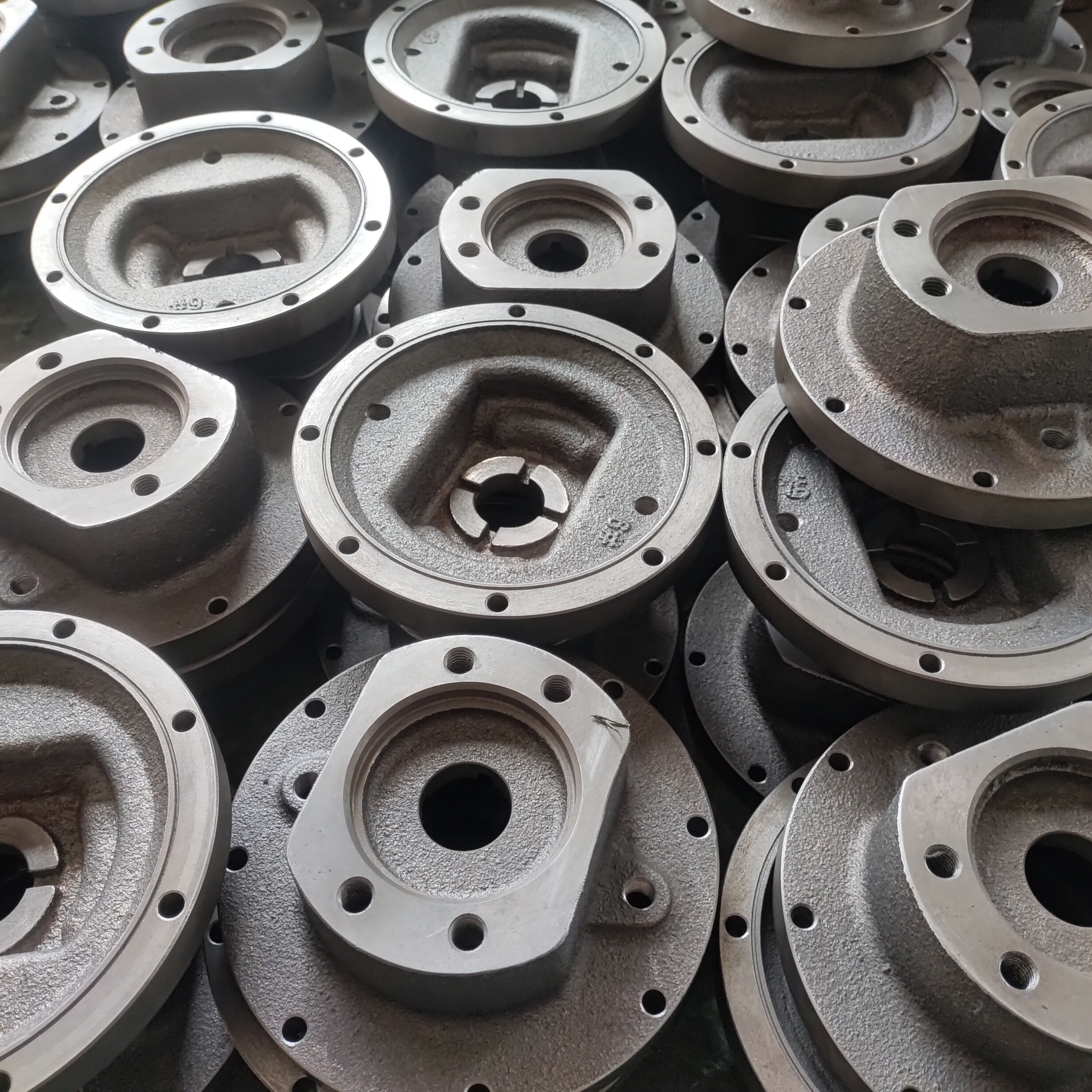

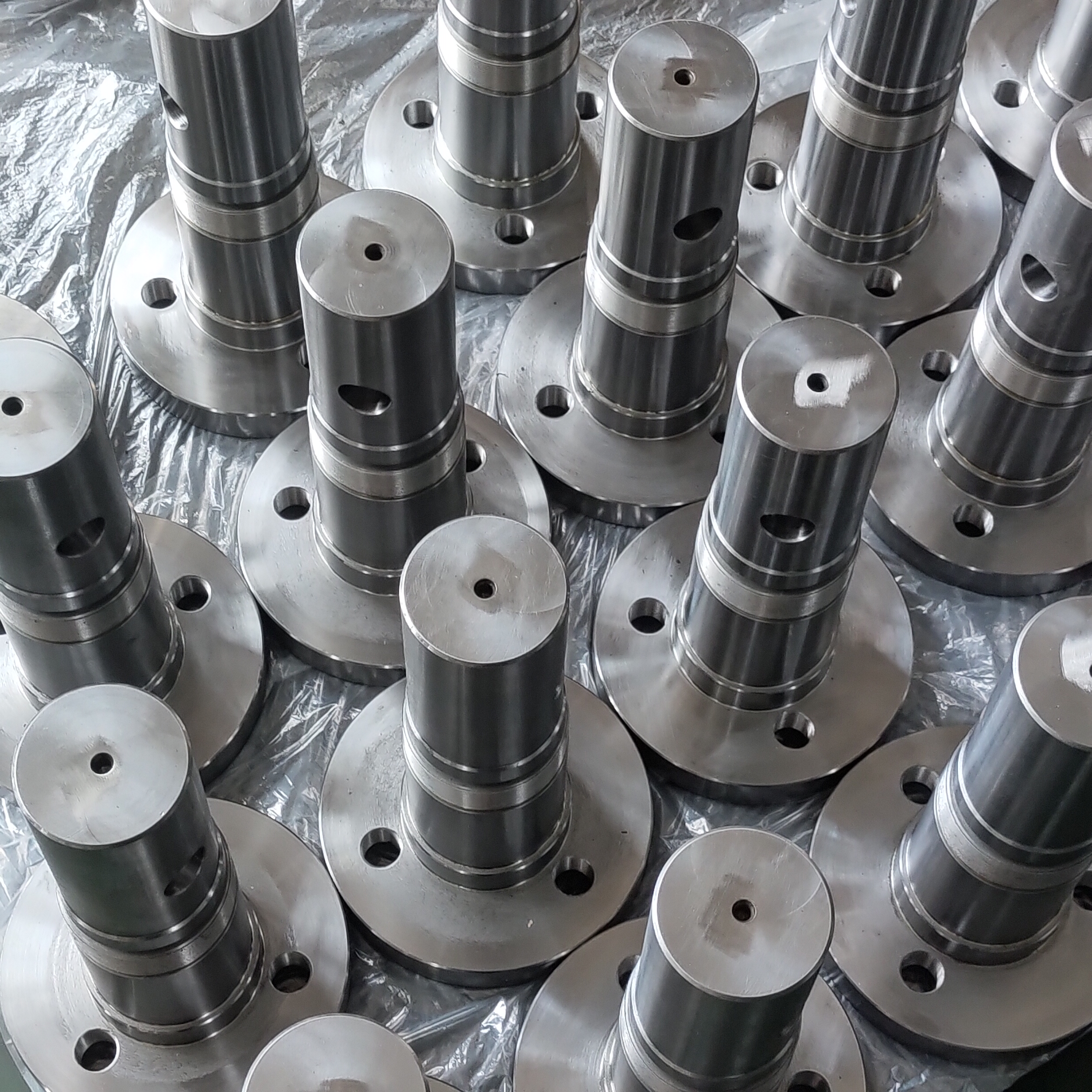

Spare Parts and Assemblings
The Construction of OMH Series Planetary Gearbox Reducers
The sun wheel, tooth ring and planetary frame in the planetary gear mechanism have a common fixed axis, and the planetary gear is supported on the planetary gear shaft fixed on the planetary frame, and engages with the sun wheel and tooth ring at the same time. When the planetary gear mechanism is running, several planetary gears on the planetary gear shaft empty set on the planetary frame can rotate around their axis on the one hand, and on the other hand, they can rotate around the sun together with the planetary frame, just like the motion of the planets in the sky, both rotation and revolution (hence the name of the star gear), in the planetary row, The sun wheel with a fixed axis, the gear ring and the planetary frame are called the three basic components of the planetary row.
FAQ:
Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.
Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.
Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
