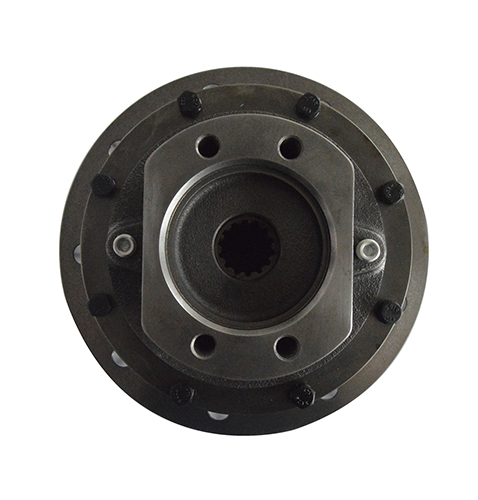

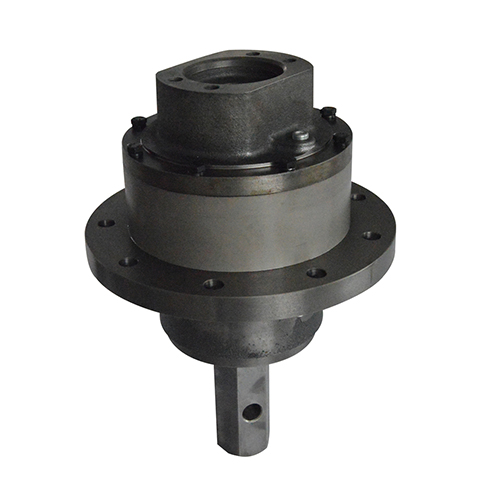

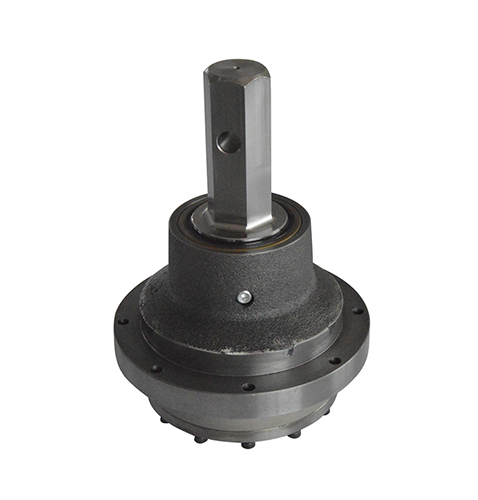

OMH-4 Hydraulic Planetary Gearbox Speed Reducer

CONTENT

Specification of OMH-4 Hydraulic Planetary Gear Auger Drive


Part Name:OMH-4 Hydraulic Auger DriveMaterial:Gray IronProcess:CNC Machining
Input Speed:95-630 rpm/minReduction Ratio:3.75-1Max Torque:

2000Nm

Output Shaft:2"Hex SAE FlangeUnit Height:330mmUnit Width:240mm
Unit Weight:28.35kgPressure:90BarFlow:80LPM





Features of our Hydraulic Planetary Gear Reducers


1. Most complete model ranges for 1-50ton excavator
2. 12 months warranty on motors Lifetime warranty on gearboxes
3. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works
4. Easy installation, operation and maintenance and High start-up and working efficiency
5. Highly support for Customization(OEM & ODM Services are acceptable here)

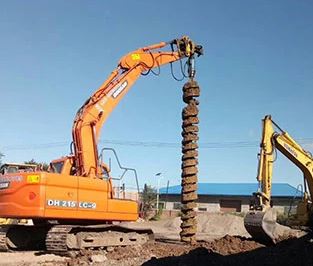

Application of Hydraulic Planetary Gearbox Speed Reducer


In the rapid hole formation operation of building foundation engineering, workers usually use auger construction machinery, which is widely applicable from the industry, such as municipal engineering, high-speed railway, construction engineering, forestry operations, etc. From the nature of the applicable soil layer, it is suitable for the use of auger for the filling soil layer, the clay layer, the sand layer, the frozen soil layer and other equipment can not drill into the formation. The most common application of auger is mainly in loose soil layers, sandy soil layers, and gravel layers. Auger is also divided into many kinds of construction methods, such as grouting replacement method, one-time pile construction method and so on. The main characteristics of auger are short working time, high hole forming efficiency, flexible, low noise, multi-purpose, simple operation and easy to learn.



FAQ:


Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.

Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.

Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
