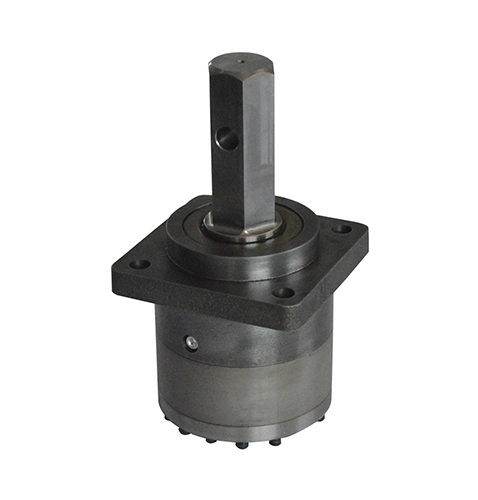

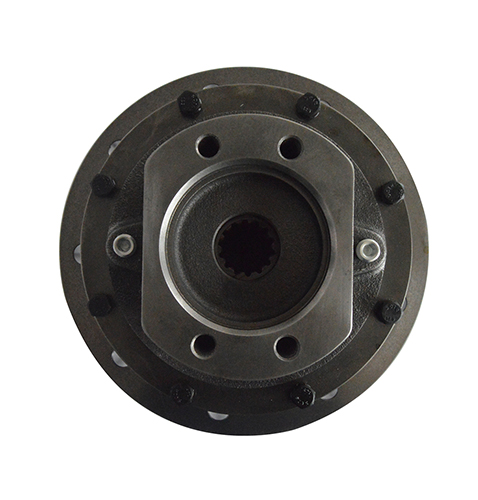

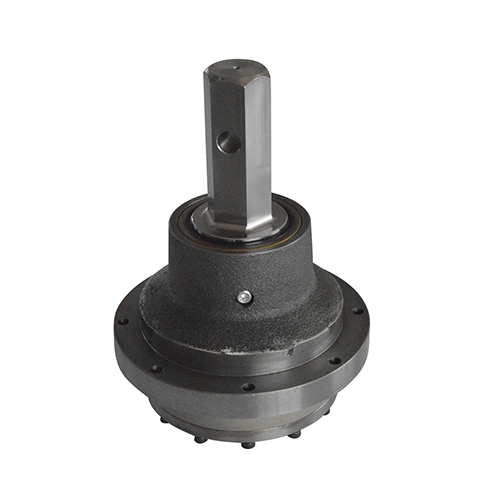

Specification of OMH-4 Hydraulic Planetary Gear Auger Drive
| Part Name: | OMH-4 Hydraulic Auger Drive | Material: | Gray Iron | Process: | CNC Machining |
| Input Speed: | 95-630 rpm/min | Reduction Ratio: | 3.75-1 | Max Torque: | 2000Nm |
| Output Shaft: | 2"Hex SAE Flange | Unit Height: | 330mm | Unit Width: | 240mm |
| Unit Weight: | 28.35kg | Pressure: | 90Bar | Flow: | 80LPM |
Features of our Hydraulic Planetary Gear Reducers
| 1. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works |
| 2. Highly support for Customization(OEM & ODM Services are acceptable here) |
| 3. Easy installation, operation and maintenance and High start-up and working efficiency |
| 4. Free components for replacement within warranty period |
| 5. Various models for wide applications and one year warranty |
Advantages of OMH-4 Hydraulic Planetary Gear Auger Drive

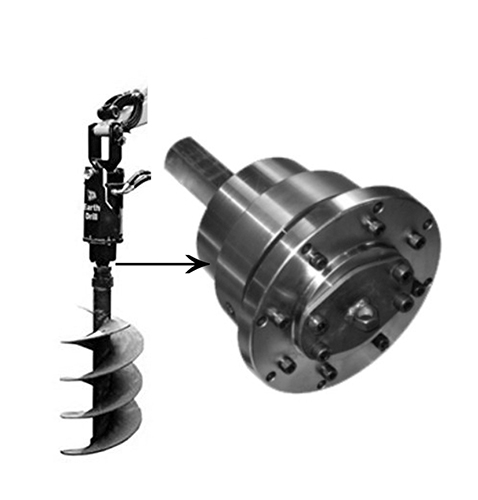

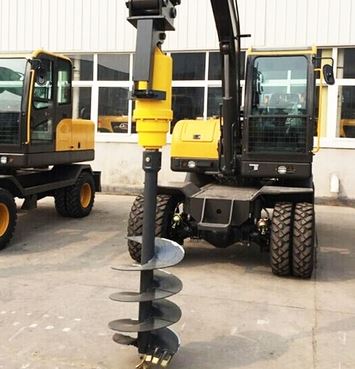

Rotary drilling method using auger to break up rock and soil and transport cuttings.
It has the characteristics of no flushing fluid, no vibration, low noise, high drilling efficiency, timely sampling and low cost,
and is suitable for drilling various soft formations without water and micro-water. Auger drilling is generally full drilling,
but there are also annular auger drilling that can take cylindrical rock and soil samples.
Auger drilling is performed using a rotary drill, auger bit and auger pipe. The auger pipe is composed of a solid shaft
or hollow pipe and a pressed spiral blade welded one by one on its outer side, and the drill pipe is connected with a pin.
Why are the Planetary Gear Auger Drives popularly in the market?
Planetary gear sets use spur gears that move in opposite directions to each other in the same plane. Although spur gears are a more basic type of gear in terms of engineering, because they do not use special angles or cuts like bevel or hermite-shaped gears, their tooth shapes are complicated to make. Depending on the application, such gear fabrication will determine the position of the teeth contact, which will then determine the available power, torque and speed potential of the gear.
Planetary gears have the ability to change ratios easily, because planetary gears are known for their high ratio potential, tight finish and firmness, and they are more versatile than other gears, because planetary gears have the ability to change ratios easily.
Planetary gears are used in internal combustion engines, electric motors or hydraulic motors because of their reliability, performance and ability to withstand high torque loads. The central gear of a planetary gear is usually the input gear. Two or three planetary gears rotate around it in the outer gear ring and are connected to the output shaft according to the gear frame. This is an example of how to maneuver when the sun gear turns and the planet gear stays in place. When the solar gear rotates, the planetary gear rotates in the position inside the ring, and this motion causes the output shaft to rotate in the opposite direction.
FAQ:
Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.
Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.
Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
