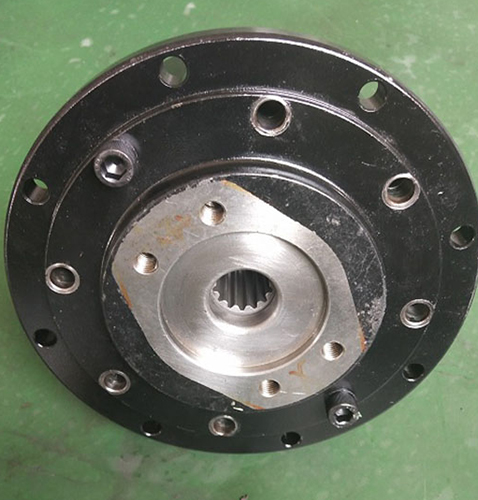

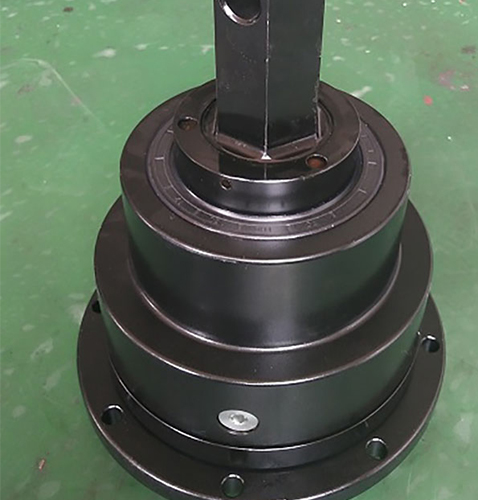

Specification of OMH-5 Hydraulic Planetary Gear Auger Drive
| Part Name: | OMH Hydraulic Auger Drive | Material: | Gray Iron | Process: | CNC Machining |
| Input Speed: | 95-630 rpm/min | Reduction Ratio: | 3.86-1 | Max Torque: | 2000Nm |
| Output Shaft: | 2"Hex SAE Flange | Unit Height: | 350mm | Unit Width: | 245mm |
| Unit Weight: | 36.65kg | Pressure: | 90Bar | Flow: | 80LPM |
Features of our Hydraulic Planetary Gear Reducers
| 1. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works |
| 2. Highly support for Customization(OEM & ODM Services are acceptable here) |
| 3. Easy installation, operation and maintenance and High start-up and working efficiency |
| 4. Free components for replacement within warranty period |
| 5. Various models for wide applications and one year warranty |

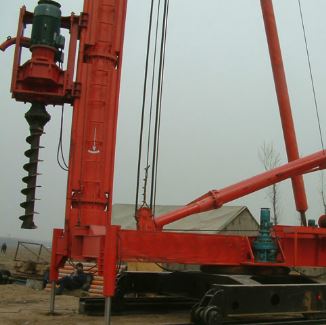

Application of OMH-5 Hydraulic Planetary Gear Auger Drive
In engineering geological drilling and engineering construction drilling, auger drilling is commonly used in soft strata drilling method. It is a dry rotary drilling method. When drilling, the motor drives the spiral drill rod through the reducer (the spiral drill rod is welded on the cylindrical rod with spiral blade shape such as twist drill rod to connect the wing bit). Under the action of bit weight, the drill bit turns into the formation, and the formation is cut to the next layer according to the spiral line, and the soil debris is transferred back to the hole along the spiral blade.

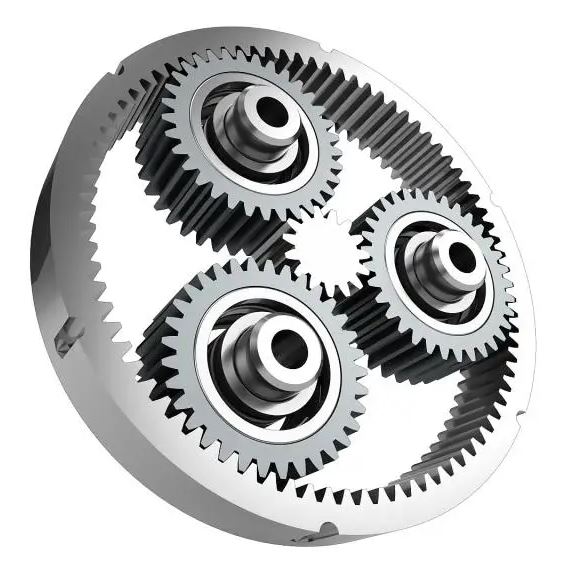

What is the Planetary Gear?
Planetary gear is a type of gear mechanism, which is composed of four components, namely, the sun wheel, a plurality of planetary gears, an internal gear and a planetary frame connecting planetary gears. Its structure is very complicated, which makes it difficult to manufacture or manufacture. It can achieve a high reduction ratio according to the gear, but it is a type of mechanism that is more suitable for decelerating mechanisms requiring intelligence and performance, such as automotive transmissions. A simple planetary gear set consists of three key components: a sun wheel (central gear) located at the core, multiple planetary gears and tooth rings (outer gear).
In a planetary gear device (also called a planetary gear device), the core gear (called a sun gear) serves as the input and drive for the group. Three or more "driven" gears (called planets) rotate around the Sun wheel. After that, the planet meshes with the gear ring from the inside, producing an internal spur gear design. Because the planetary gear is evenly distributed around the sun, we all know that the planetary gear system is made of extremely solid materials. Another benefit of the planetary gear set is that it can be easily converted to a different gear ratio by simply removing the bracket and sun gear.
FAQ:
Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.
Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.
Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
