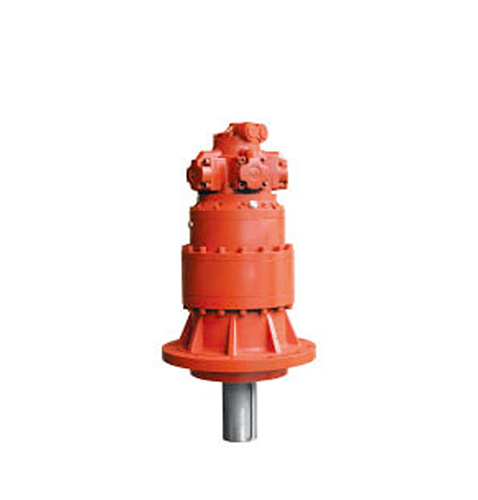

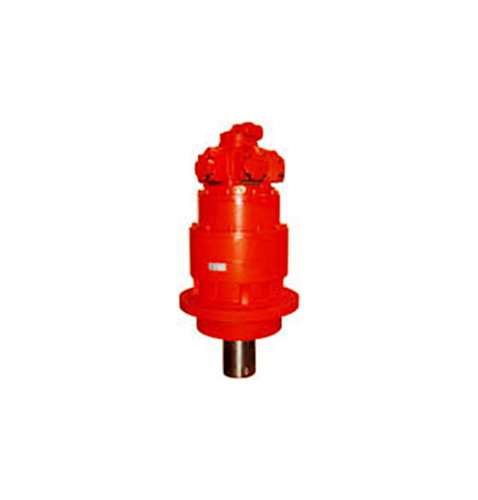

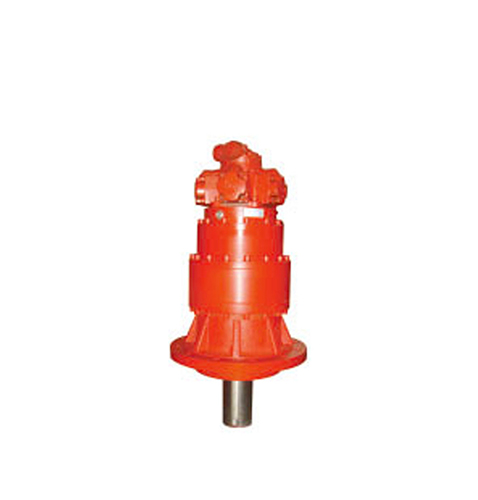

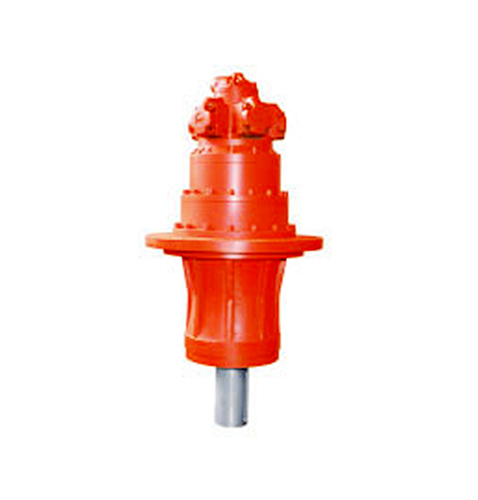

THZ010069T-B Hydraulic Planetary Auger Drive Specification
| Item No.: | THZ010069T-B | Material: | Gray Iron | Name: | Auger Drive |
| Reduction Ratio: | 99 | Max Torque: | 10000 Nm | Max Output Speed: | <7< td=""> |
| Hydraulic Motor: | TMD2-100I | Displacement: | 11187 ml/r | Max Pressure: | 6 Mpa |
| Unit Weight: | 300 kg | Unit Width: | 420mm | Unit Height: | 883mm |
| OEM & ODM: | Acceptable | Color: | Red, Black | MOQ: | 200 pcs |

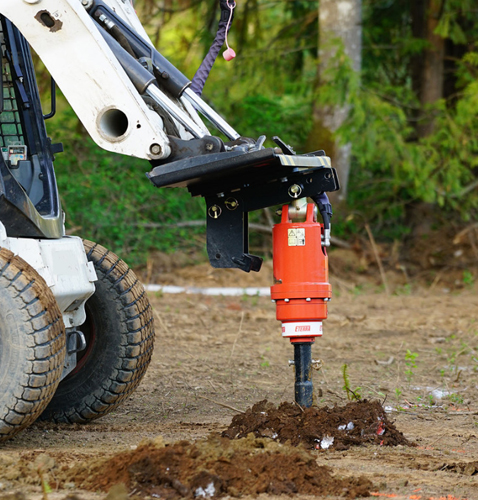

Application of Rotary Hydraulic Planetary Auger Drives
We at CCMS produce a wide range of hydraulic planetary gear reducer auger drives. We produce auger drives with low speed and high torque, high transmission efficiency, high material strength, and the ability to withstand various environments and high pressures.
In the rapid hole formation operation of building foundation engineering, workers usually use auger construction machinery, which is widely applicable from the industry, such as municipal engineering, high-speed railway, construction engineering, forestry operations, etc. From the nature of the applicable soil layer, it is suitable for the use of auger for the filling soil layer, the clay layer, the sand layer, the frozen soil layer and other equipment can not drill into the formation. The most common application of auger is mainly in loose soil layers, sandy soil layers, and gravel layers. Auger is also divided into many kinds of construction methods, such as grouting replacement method, one-time pile construction method and so on. The main characteristics of auger are short working time, high hole forming efficiency, flexible, low noise, multi-purpose, simple operation and easy to learn.
The auger can effectively improve the working efficiency. The up and down movement of the drill pipe is realized by the drive device to the reducer, which is more conducive to the downward acceleration and rapid drilling. The gear box can slide up and down the slide of the rig frame to ensure the perpendicularity of the drilling hole; The drill pipe is a spiral blade drill pipe, and the soil material can return to the ground along the blade during drilling. Since the power output shaft is a hollow core shaft, the upper mouth of the core shaft can be connected with the cement pouring equipment for cement pouring. Screw drill is a kind of construction machinery suitable for rapid hole formation in building foundation engineering, suitable for power, telecommunications, municipal, high-speed rail, high-speed, highway, construction, oil, forest and other soil layer above the column, pile, bridge pier, forest and other drilling projects, to achieve multi-function characteristics.
Features of THZ010069T-B Hydraulic Planetary Auger Drive
| 1. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works |
| 2. Highly support for Customization(OEM & ODM Services are acceptable here) |
| 3. Easy installation, operation and maintenance and High start-up and working efficiency |
| 4. Free components for replacement within warranty period |
| 5. Various models for wide applications and one year warranty |
Production of THZ010069T-B Hydraulic Planetary Auger Drive
The raw material - Gray Iron
Gray cast iron is a cast iron containing flake graphite, which is the most widely used cast iron, accounting for more than 80% of the total production of cast iron. Gray cast iron material has low comprehensive mechanical properties and high compressive strength, which is 3 to 4 times its tensile strength. The vibration absorption capacity is 10 times greater than that of steel, so it is often used to make a stand to withstand vibration. The elastic modulus is low, and the change of wall thickness has great influence on the mechanical properties.

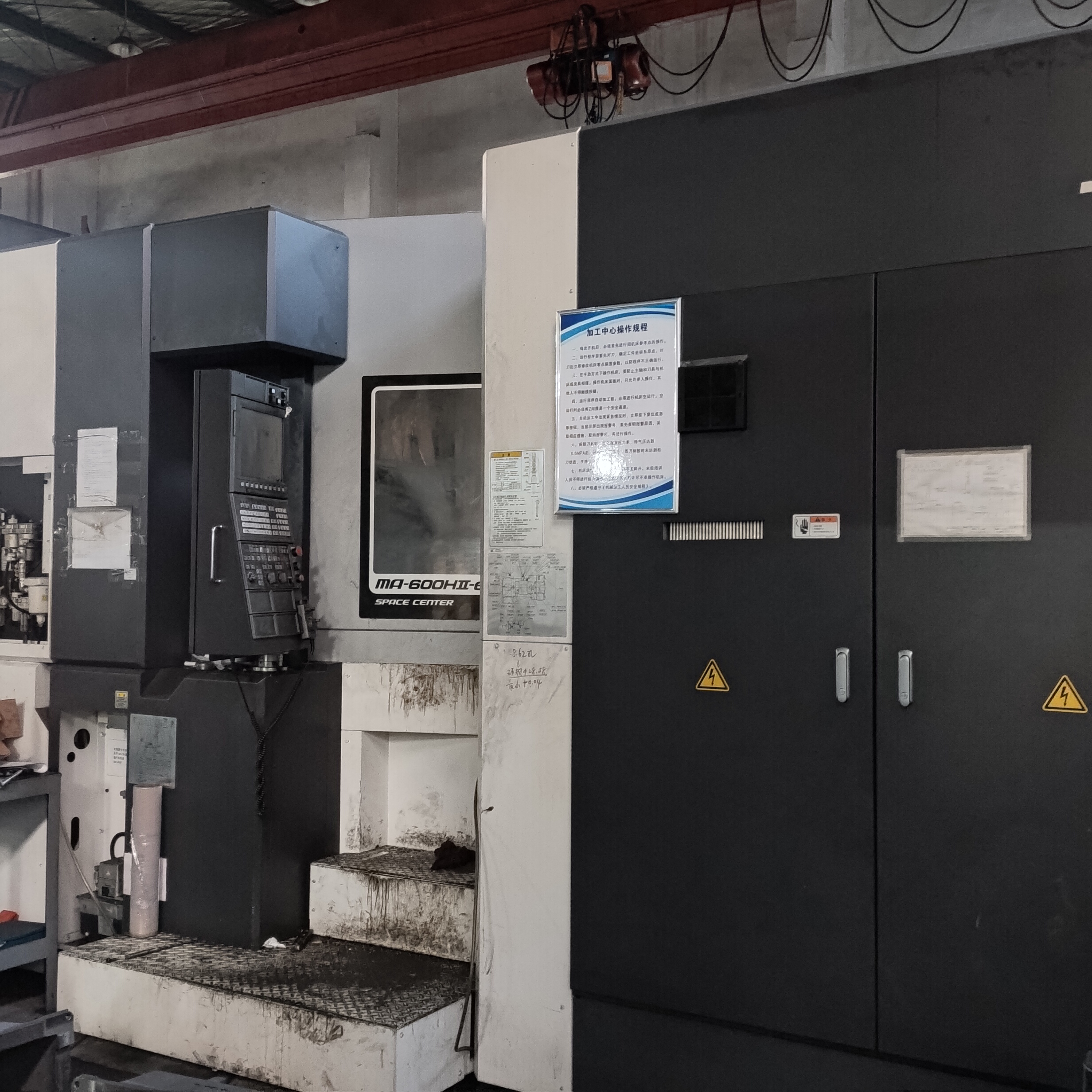

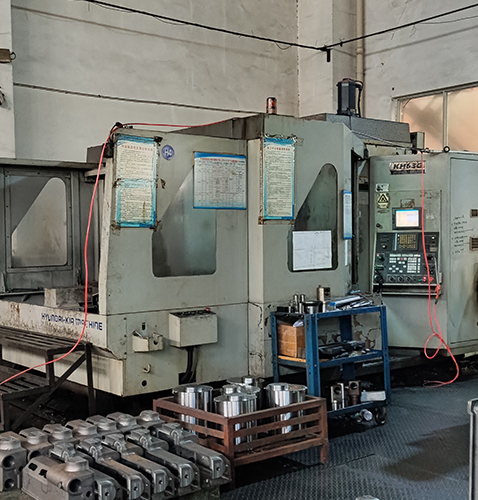

CNC machining Process
FAQ:
Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.
Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.
Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
