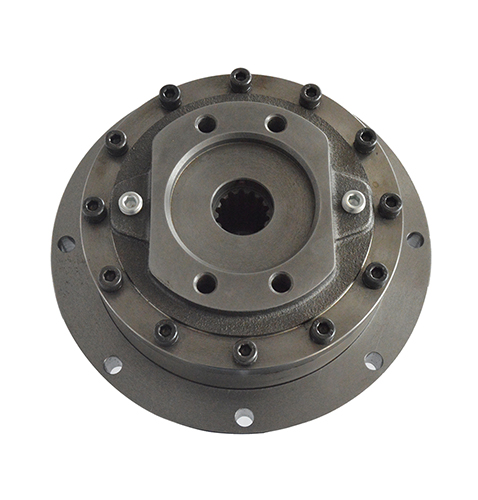

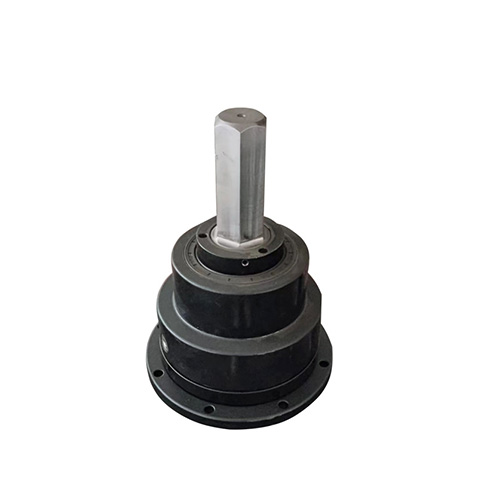

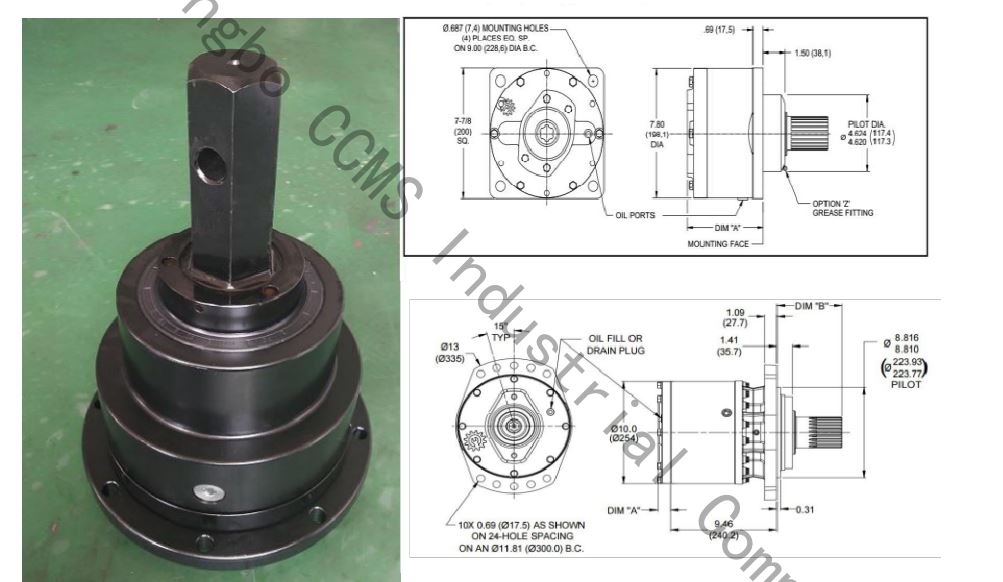

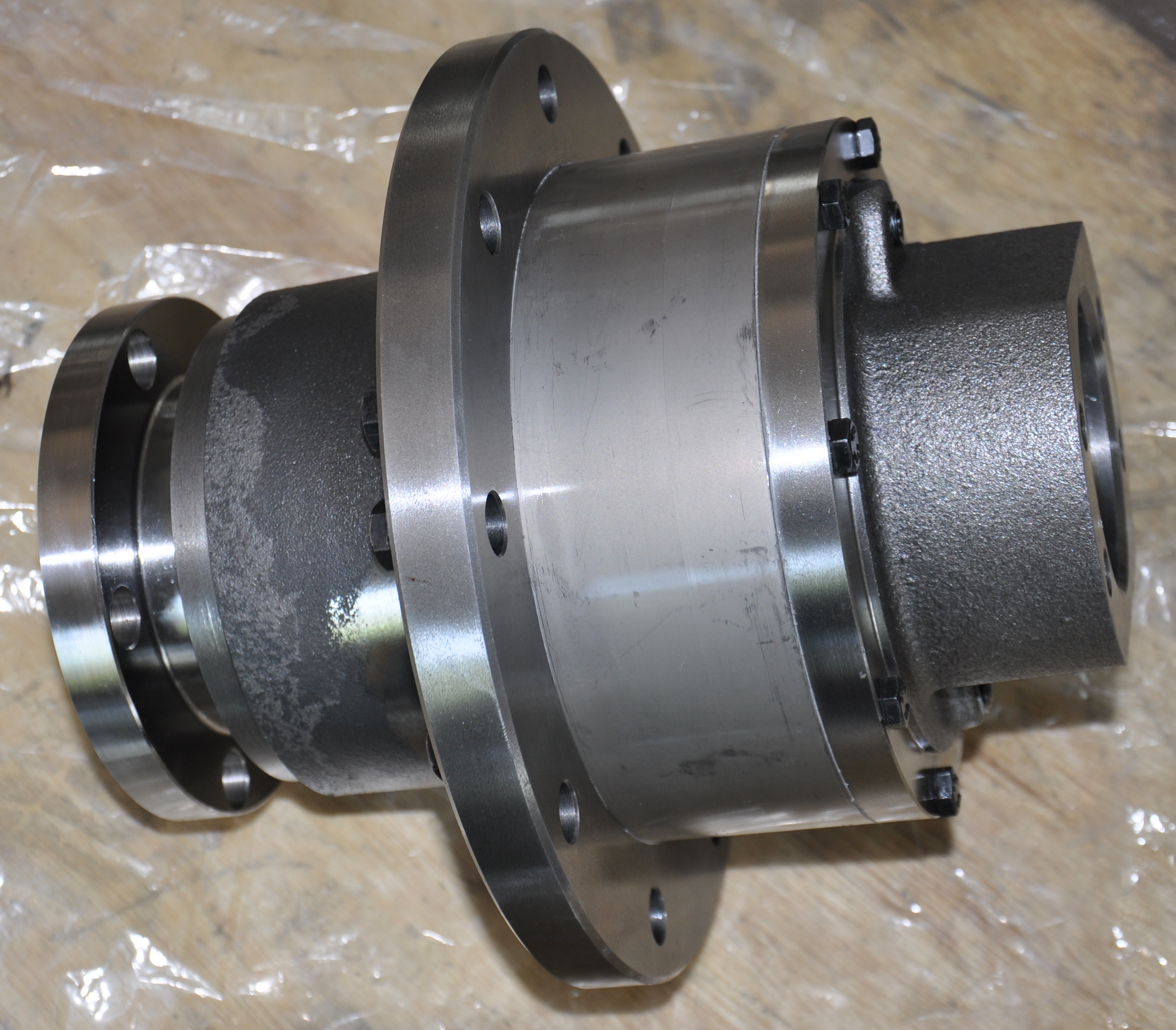

OMH-5 Hydraulic Planetary Gear Reducer Specification
| Item No.: | OMH-5 | Drive Type: | Hydraulic Motor | Input Speed: | 95-630 rpm/min |
| Reduction Ration: | 3.86:1 | Torque Range: | 2500 Nm | Output shaft: | 2"Hex |
| Unit Height: | 285mm | Unit Width: | 245mm | Unit Weight: | 36.65 kg |
| Max Oil Pressure: | 140 Bar | Trade Mark: | Customized/CCMS | Material: | Gray Iron |
| Oil Flow Range: | 80 LPM | Gear Shape: | Cylindrical Gears | Hydraulic Motor: | Optional |
Application of OMH-5 Hydraulic Planetary Gear Reducers

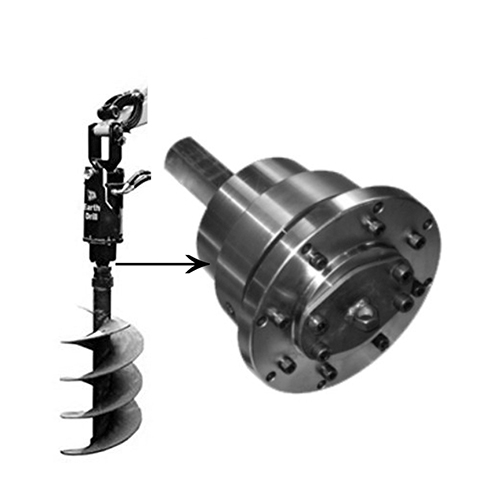

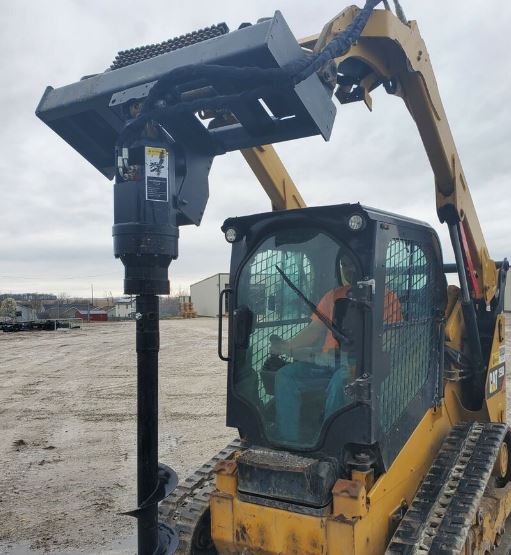

Auger is mainly used in sliding steering loader, small tractor, small loader, small excavator, excavating loader, multi-function telescopic arm fork loader and other models, to achieve a machine with multiple capabilities, the maximum benefit of the machine. Auger is mainly composed of four parts, which are: main pendant, drive unit, drill pipe, drill tool. Applied on different models, you can select the corresponding pendant. According to the different soil quality and operation requirements, the corresponding drilling tools and drilling teeth should be selected. |
Parts of OMH-5 Hydraulic Planetary Gear Reducers
| Sun Gear: | 1 | Top Vover: | 1 | Planetary Housing: | 1 |
| Output Shaft Boss: | 1 | Output Shaft ASM: | 1 | Output Shaft Seal: | 1 |
| Oil Plug 1/2" NPT : | 2 | 160mm "O" Ring : | 2 | Ring Gear: | 1 |
| Bolt M12*1, 75*75MM OXIDE: | 8 | Set Screw, Ext Point: | 2 | Tapered Roller Bearing Cone : | 1 |
| 115 MM Bearing Race: | 2 | Planet Gear: | 3 | Output Shaft: | 1 |
| Planet Retaining Bolt: | 3 | Bearing Washer: | 3 | Needle Bearing: | 63 |
Features of OMH-5 Hydraulic Planetary Gear Reducers
| 1. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works |
| 2. Highly support for Customization(OEM & ODM Services are acceptable here) |
| 3. Easy installation, operation and maintenance and High start-up and working efficiency |
| 4. Free components for replacement within warranty period |
| 5. Various models for wide applications and one year warranty |

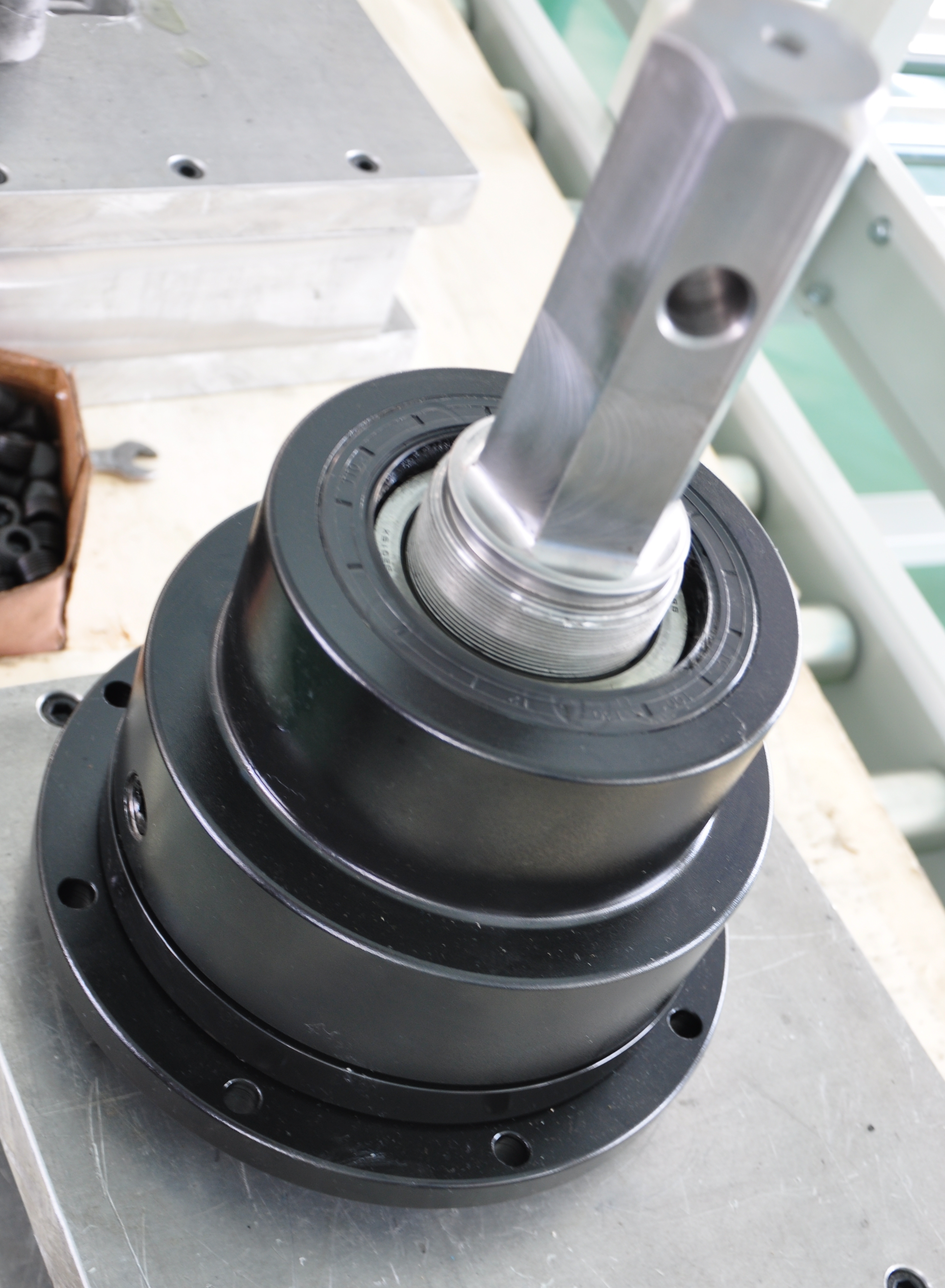

Production of OMH Series Hydraulic Planetary Gear Reducers
We CCMS is a OEM factory, accpet customerized. Most of our products are customerzation.The product include gear housing/boxes/reducers, Iron casting products, Aluminum products. Such as auto parts, agriculture parts, and other industrial parts.

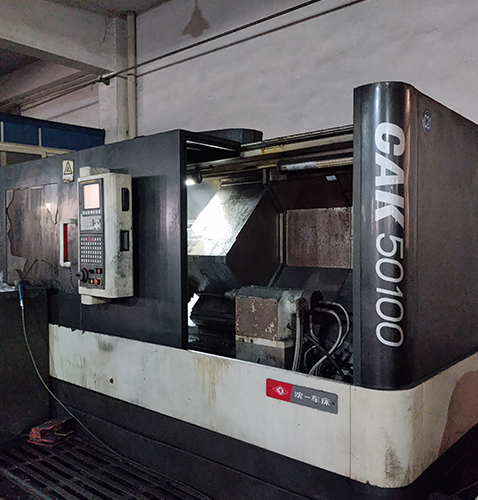

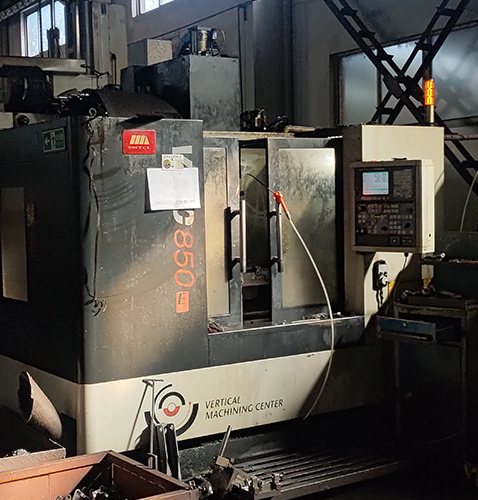

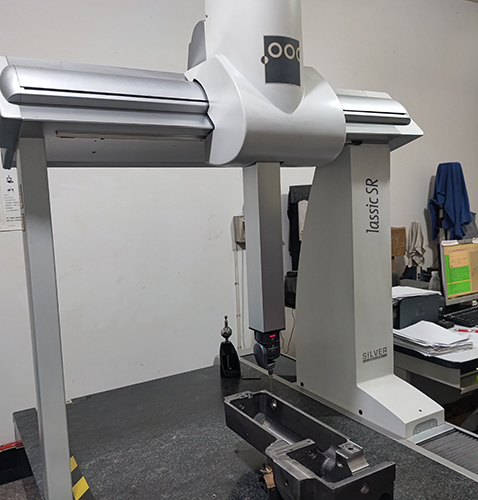

We have the most advanced testing facilities, such as spectral analyzer for rubber material chemical composition test, tensile strength testing machine, impact value tester and hardness meter, magnetic particle testing machine, sandblasting machine and heat treatment equipment. Besides, there are numerous advanced equipment in the precision machining workshop: have 23 sets CNC lathes, 10sets vertical CNC boring and milling center and one horizontal boring and milling center imported from Korea, two general milling machine, and two general lathes, one grinder, 10sets drilling and tap machines, two half automatic saw, and one Coordinate Measuring Machine (CMM), one Projector and one machining surface quality testing machine and one Mahr altitude instrument. Our product's tolerance can be controlled under 0.01mm. The testing machine's accuracy is within 0.005mm. ISO9000 has been executed.
Advantage of the raw material for OMH Series Hydraulic Planetary Gear Reducers
Characteristic 1: ductile iron has very good impact resistance and ductility. This is because the graphite flakes in the ductile iron will become very small carbon elements through a special treatment, and these small carbon elements will enter the gap of the iron element, which greatly strengthens the physical properties of the ductile iron, thus having a very good impact resistance. We also know that graphite is not malleable, but iron has good malleability, and the combination of the two perfectly inherits the advantages of both, making ductile iron both impact resistance and malleability. Characteristic 2: ductile iron can effectively prevent the generation of cracks. In the field of industry, we image called crack terminator, through the microscope, experts can clearly see that the crack produced by iron after cracking to the graphite ball stopped. This is because the graphite ball has very high stability, and the probability of cracking is very small. Feature three: Corrosion resistance. As we said above, ductile iron is the graphite element into the gap between the iron element. In this way, corrosive objects are unable to corrode iron. |
FAQ:
Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.
Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.
Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
