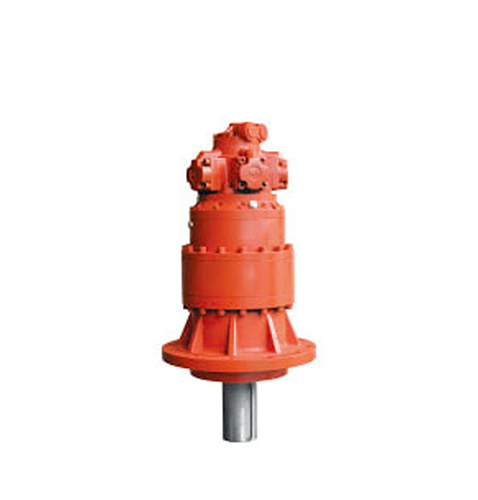

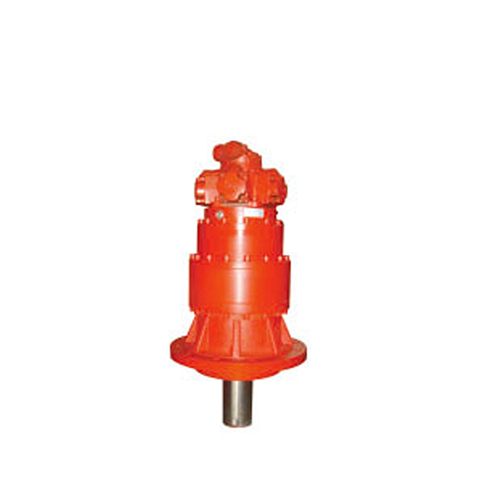

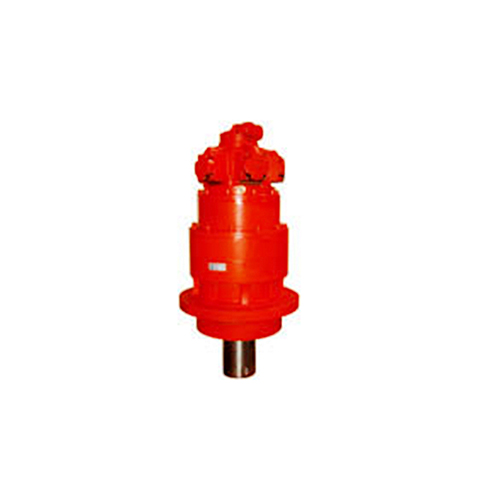

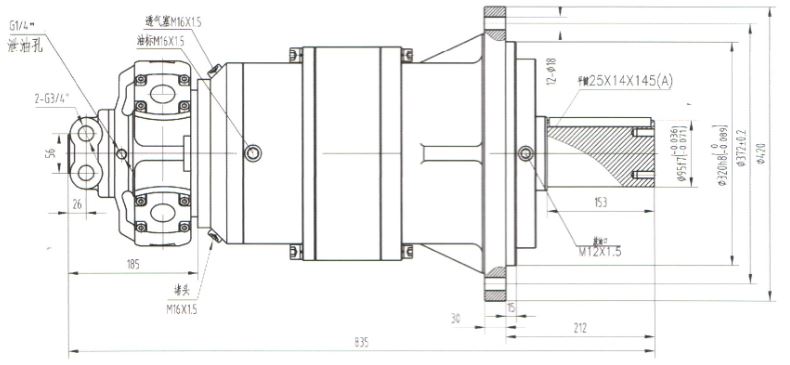

THZ010069T-B Hydraulic Planetary Auger Drive Specification
| Item No.: | THZ010099T-A | Material: | Gray Iron | Name: | Auger Drive |
| Reduction Ratio: | 99 | Max Torque: | 10000 Nm | Max Output Speed: | <7 |
| Hydraulic Motor: | TMD2-100I | Displacement: | 7797 ml/r | Max Pressure: | 8.5 Mpa |
| Unit Weight: | 300 kg | Unit Width: | 420mm | Unit Height: | 883mm |
| OEM & ODM: | Acceptable | Color: | Red, Black | MOQ: | 200 pcs |

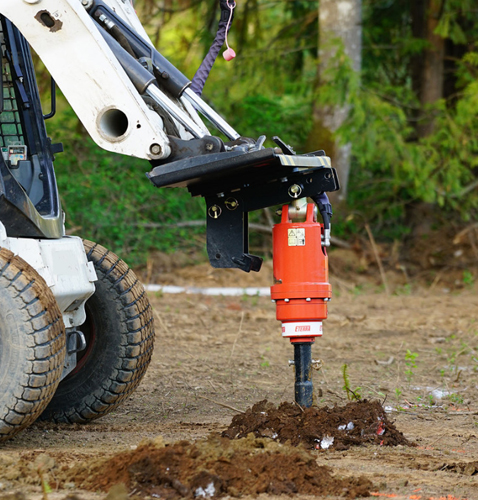

Application of Rotary Hydraulic Planetary Auger Drives
| During the construction of the auger, the auger drilling tool is used to drill holes and concrete is poured through the center pipe of the drill pipe, which is suitable for the construction of small-diameter cast-in pile foundation of the transmission line tower. The drilling and piling operation is highly efficient and has the following characteristics: |
| (1) Using a long auger to form a hole, concrete can be injected into the bottom of the hole through the center pipe of the drill pipe. It can not only drill and pile at one time, but also be used for dry hole formation, grouting replacement and other construction methods. |
| (2) The power head adopts two-drive, three-ring reducer with large center through hole, high bearing capacity and overload capacity, compact structure, low noise and long life. |
(3) The pile frame adopts hydraulic system, which can lift the mast column by itself. Walking, rotating, accurate and reliable alignment, high construction efficiency, low labor intensity. |
| (4) The pile machine adopts the method of combining hauling and loading, which has strong integrity, convenient site transfer and low cost. |
| (5) The electrical, hydraulic, control and monitoring instruments of the whole machine are concentrated in the cab, which is convenient for the driller to operate. Hydraulic auger integrity enterprise. |
Features of THZ010069T-B Hydraulic Planetary Auger Drive
| 1. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works |
| 2. Highly support for Customization(OEM & ODM Services are acceptable here) |
| 3. Easy installation, operation and maintenance and High start-up and working efficiency |
| 4. Free components for replacement within warranty period |
| 5. Various models for wide applications and one year warranty |
Production of THZ010069T-B Hydraulic Planetary Auger Drive
The raw material - Gray Iron
Due to its great sensitivity to the cooling rate, gray cast iron castings often appear white cracks and cracks in thin sections, and often lead to lysification in thick sections. Therefore, there is a critical value of section thickness of gray cast iron. If it exceeds this value, with the increase of wall thickness, its mechanical properties such as strength, vibration dissipation ability and elastic modulus will not increase, but significantly weaken. Due to its low thermal stability, gray cast iron cannot be used to manufacture parts that operate for long periods of time at temperatures above 250 degrees Celsius. Compared with cast steel material, the use of gray cast iron can obtain a thinner thickness, more complex geometry of the casting, and the residual internal stress and warping deformation in the casting are smaller. Due to its relatively uniform performance in various sections, gray cast iron is often used to manufacture castings with high requirements but not necessarily thick sections.

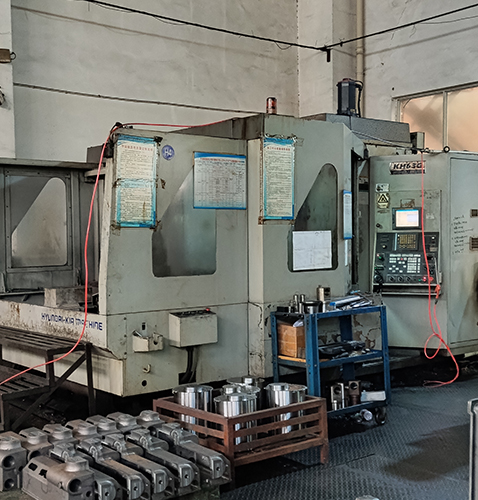

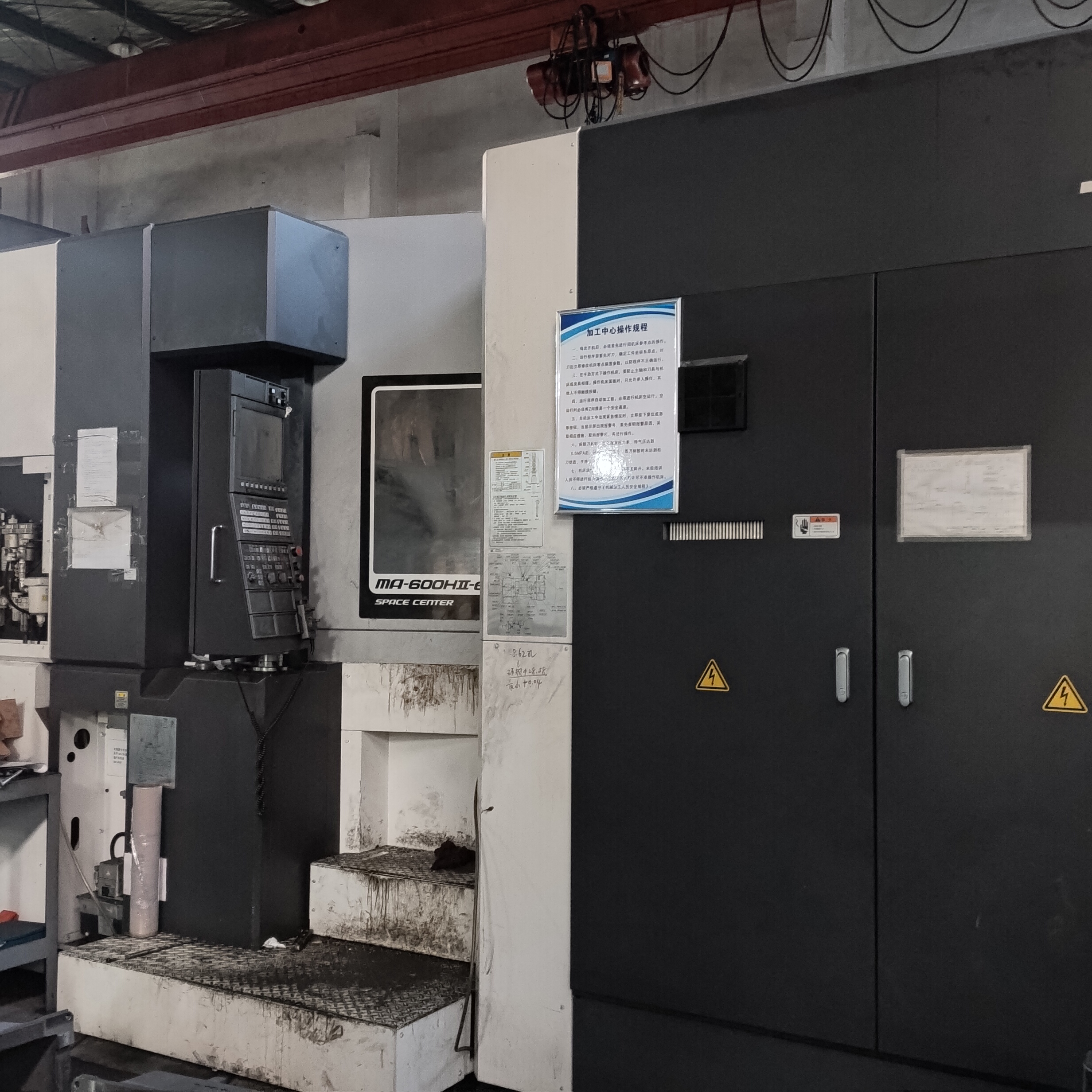

CNC machining Process
FAQ:
Q: Who are you?
A: We are the OEM Manufacturer of varied kinds of Planetary Gear Reducers, Geaboxes, Bush Motors, Helical Precision Reducers.
Q: How to choose a most suitable Precision Reducer?
A: You can tell me your requirements, such as where does they use, the detailed specifications. Just like like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you support Customization or have standard gear motors?
A: Yes. We accpet customization, just send us your detailed drawings. We also do standard motors, if you need, we can delivery soon.
Q: How about your lead time?
A: The leading time of standard motor in our factory just need 15-30 days. If it is a customized, it may take more time to produce. But, it always according to the orders.
