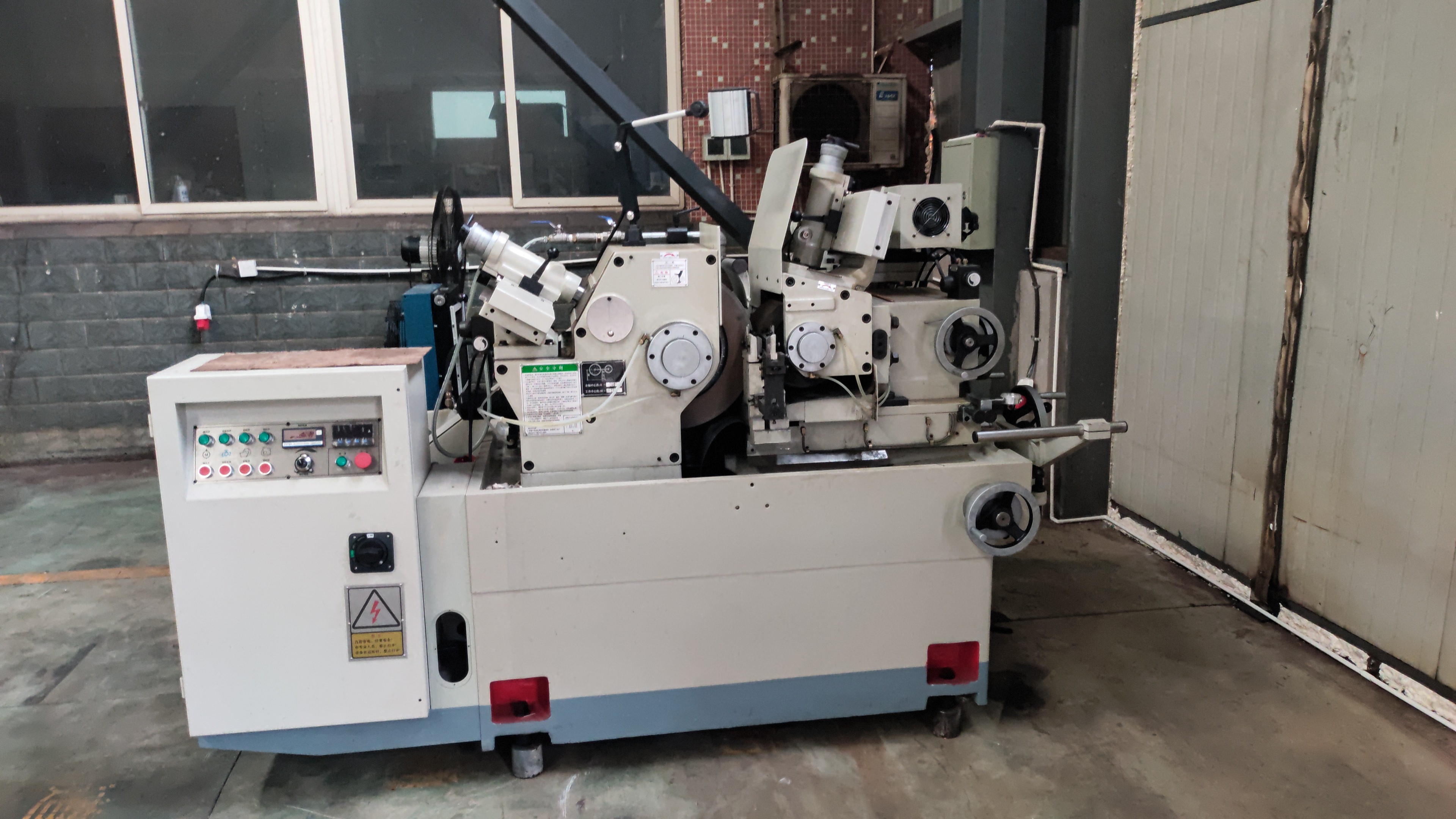

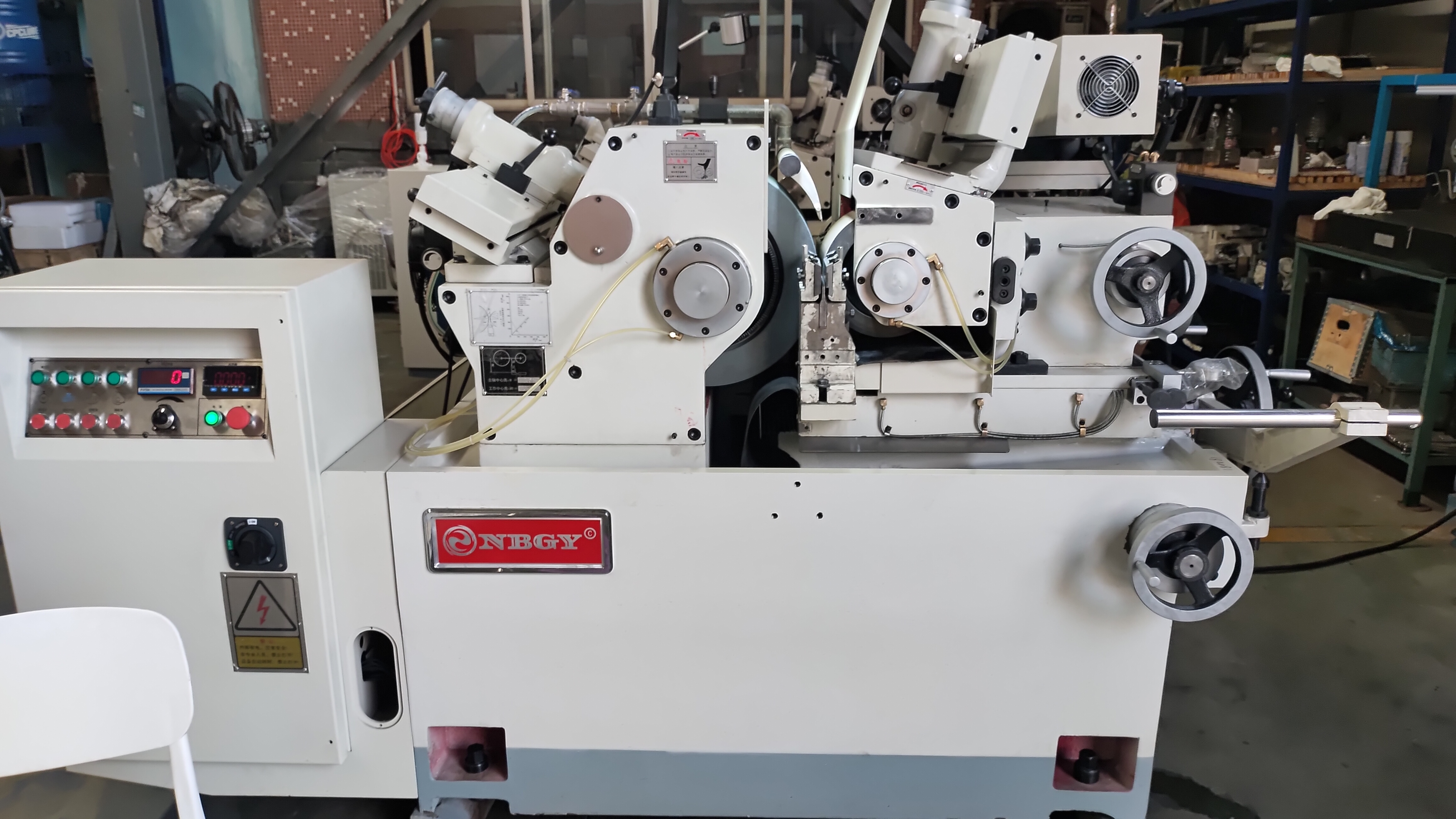

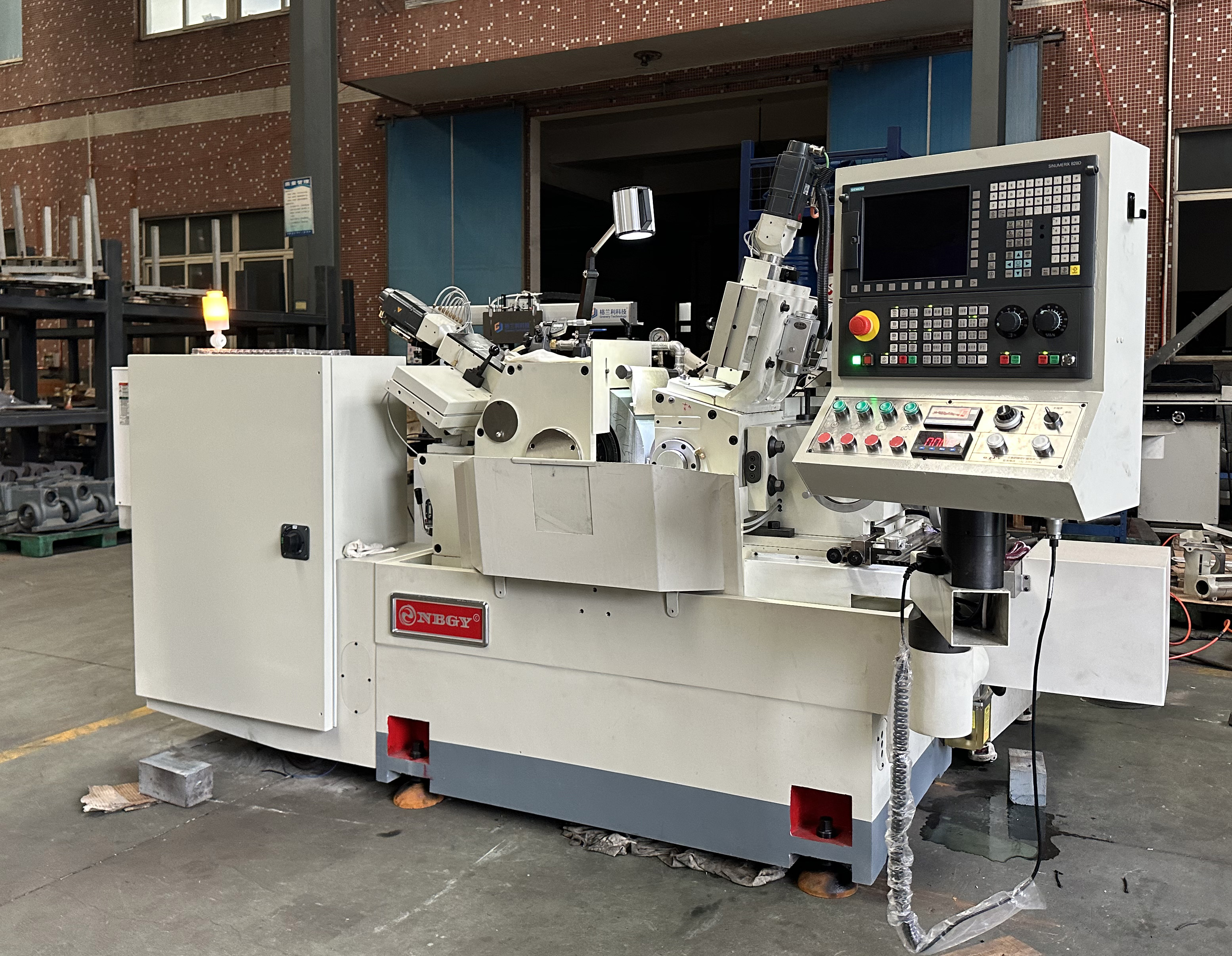

GY305C-150 5Axis CNC Centerless Grinding Machine

$\"cnc$
Ningbo Gaoyan Precision Machinery Co., LTD., located at No. 166 Xingcheng Road, XiePu Town, Zhenhai District, Ningbo City, is a comprehensive company specializing in the research and development, production, maintenance and after-sales of middle and high grade precision centerless grinding machine.
The company introduced precision machining equipment (China Haitian Longmen machining center, Japan Okuma machining center) and precision testing equipment (Hexagon coordinate measuring instrument, Japan Santoshi roundness, cylindricity measuring instrument, Japan Santoshi roughness measuring instrument), gathered a group of experienced and skilled design experts and production technology. Lead the centerless grinding machine industry in the high-precision continuous and stable conditions, towards the direction of non-standard, full automation.
The company's centerless grinding machine types include the following:
Dynamic pressure structure centerless grinding machine, static pressure structure centerless grinding machine, dynamic and static combined centerless grinding machine, bearing structure centerless grinding machine, full CNC automatic centerless grinding machine.
Our grinding machines are widely used in automotive, motorcycle parts, electrical appliances, office shafts, molds, cutting tools, tungsten steel, optical fiber, ceramic glass, medical equipment, Marine and other precision manufacturing.
Parameters of GY305-150 Manual Centerless Grinding Machines
Item GY 305-150-J GY 455-205-J GY 455-250-J GY 455-305-J
Specification
Grinding dia.range of stand.worktable(mm) 1~30 1~50
Grinding dia.range of special worktable(mm) 30-60 40~120
Sand wheel size(ODxWxID)(mm) 305×150×120 455×205×228.6 455×255×228.6 455×305×228.6
Guide wheel size(OD×WxID)(mm) 205×150×90 255×205×111.2 255×255×111.2 255×305×111.2
Sand wheel speed(RPM) 1950 1460 1350
Guide wheel speed(Servo cont.var.speed)(RPM) 1-230
Driven motor of sand wheel(KW) 5.5(7.5HP) 11(15HP) 15(20HP)
Driven motor of guide wheel(KW) 2 3
Driven motor of oil pump(KW) 1.5(2HP)
Driven motor of cooling pump(HP) 1/4
Feeding handwheel scale of guide wheel 3.5mm/r,0.02mm/scale 4mmlr;0.05mm/scale
Fine tuning handwheel scale of guide wheel 0.10mm/r,0.001mm/scale 0.114mm/r;0.001mm/scale
Feeding handwheel scale of work table 7mm/r;0.05mm/scale 5mmlr;0.05mm/scale
Fne tuning handwheel scale of work table 0.20mmlr.0.001mm/scale 0.10mmlr.0.001mm/scale
Feeding handwheel scale of sand wheel triming 1.25mm/r,0.01mm/scale 2.0mm/r;0.01mm/scale
Feeding handwheel scale of guide wheel triming 125mmlt 0.01mm/scale 2.0mm/r;0.01mm/scale
Tit angle of guide wheel(5) +5~-3 +5~-3
Triming angle of guide wheel() +5~-5 +6~-6
Rotation angle of guide wheel () +5--5 +6~-6
Machine dimension(LxW×H)(mm) 1910×1300×1470 2480×1960×1450 2480×2010×1450 2480×2070×1450
Pack dimension(LxW×H)(mm) 1970×1590×1600 2560×2420×1650 2560×2370×1650 2560×2420×1650
Net w eight(KG) 1500 3100 3200 3350
Gross weight(KG) 1750 3000 3450 3600
Operating System & Software
$\"cnc$
Adopting a safe and reliable control system means high efficiency. The Ningbo Gaovan Centerless Grindinn Machine adonts
Siemens Sinumerik's CNC svstem and Simodrive digital servo technolonv The nrerision and fastest evecution eneed of
dinital drivinn are the nuarantee for hinh-nrecision machining,
and the complete performance makes programming for production operation, seing adjustment, tool replacement,
tool trimming, and complex grinding processing easy.

$\"cnc$

Software
1. Application oriented software supports every type of grinding process
2. Built-in comprehensive expert level system
supports cutting in and traversing grinding processes
3. Optional additional software module for optimizing grinding
technology
4. Comprehensive operation and fault information facilitate real-time operation prompts and fault diagnosis
5. User defined screen function, customizable operation screen according to user needs, high operability
6. Machine tools and operational safety assurance functions that comply with EU standards
7. Follow the EU EMC electromagnetic compatibility and low-voltage electrical specifications
8. Shorten setup and adjustment time
throughhelper programs and semi-automatic programs
9. Built-in maintenance menu
10. Dynamic monitoring of CNC servo axis

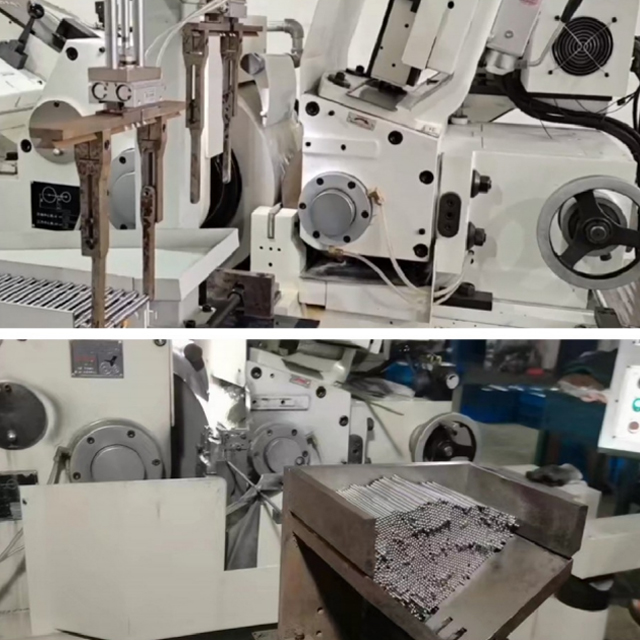

Grinding Samples
$\"centerless$

FAQ

Q: Are you a manufacturer of trading company?
A: We CCMS Industrial is a manufacturer which has 4000 square meters workshop and 40 sets high precision cnc machining machines.
Q: What kind of products are produced in your factory?
A: We supply Auto parts, Gearbox, Gear housings, Heat exchangers, Cast iron parts, Stainless steel fittings, Aluminum alloy parts.
Besides these, we also support CUSTOMIZATION services, just send us your drawings, we will produce for you.
Q: How long is your delivery time?
A: Generally, it's 10 day if we have stock, or it is 45 days if the products are not in stock.
Q: Could you provide the samples? By free or extra cost?
A: Usually our samples can be offered by free if it is a small parts. Sample fee could be free, but the freight need to be paid by you.
Q: How is your company's payment terms?
A: If the amount is less than USD 10000.00, it needs to be paid by 100%. If the amount is more than USD10000.00, we alloy 30% deposit, the balance is need to be paid before shipment.
We only accept Payment by T/T.

VIEW MORE

\"cnc — GY305C-150 5Axis CNC Centerless Grinding Machine

$\"cnc$
Ningbo Gaoyan Precision Machinery Co., LTD., located at No. 166 Xingcheng Road, XiePu Town, Zhenhai District, Ningbo City, is a comprehensive company specializing in the research and development, production, maintenance and after-sales of middle and high grade precision centerless grinding machine.
The company introduced precision machining equipment (China Haitian Longmen machining center, Japan Okuma machining center) and precision testing equipment (Hexagon coordinate measuring instrument, Japan Santoshi roundness, cylindricity measuring instrument, Japan Santoshi roughness measuring instrument), gathered a group of experienced and skilled design experts and production technology. Lead the centerless grinding machine industry in the high-precision continuous and stable conditions, towards the direction of non-standard, full automation.
The company's centerless grinding machine types include the following:
Dynamic pressure structure centerless grinding machine, static pressure structure centerless grinding machine, dynamic and static combined centerless grinding machine, bearing structure centerless grinding machine, full CNC automatic centerless grinding machine.
Our grinding machines are widely used in automotive, motorcycle parts, electrical appliances, office shafts, molds, cutting tools, tungsten steel, optical fiber, ceramic glass, medical equipment, Marine and other precision manufacturing.
Parameters of GY305-150 Manual Centerless Grinding Machines
Item GY 305-150-J GY 455-205-J GY 455-250-J GY 455-305-J
Specification
Grinding dia.range of stand.worktable(mm) 1~30 1~50
Grinding dia.range of special worktable(mm) 30-60 40~120
Sand wheel size(ODxWxID)(mm) 305×150×120 455×205×228.6 455×255×228.6 455×305×228.6
Guide wheel size(OD×WxID)(mm) 205×150×90 255×205×111.2 255×255×111.2 255×305×111.2
Sand wheel speed(RPM) 1950 1460 1350
Guide wheel speed(Servo cont.var.speed)(RPM) 1-230
Driven motor of sand wheel(KW) 5.5(7.5HP) 11(15HP) 15(20HP)
Driven motor of guide wheel(KW) 2 3
Driven motor of oil pump(KW) 1.5(2HP)
Driven motor of cooling pump(HP) 1/4
Feeding handwheel scale of guide wheel 3.5mm/r,0.02mm/scale 4mmlr;0.05mm/scale
Fine tuning handwheel scale of guide wheel 0.10mm/r,0.001mm/scale 0.114mm/r;0.001mm/scale
Feeding handwheel scale of work table 7mm/r;0.05mm/scale 5mmlr;0.05mm/scale
Fne tuning handwheel scale of work table 0.20mmlr.0.001mm/scale 0.10mmlr.0.001mm/scale
Feeding handwheel scale of sand wheel triming 1.25mm/r,0.01mm/scale 2.0mm/r;0.01mm/scale
Feeding handwheel scale of guide wheel triming 125mmlt 0.01mm/scale 2.0mm/r;0.01mm/scale
Tit angle of guide wheel(5) +5~-3 +5~-3
Triming angle of guide wheel() +5~-5 +6~-6
Rotation angle of guide wheel () +5--5 +6~-6
Machine dimension(LxW×H)(mm) 1910×1300×1470 2480×1960×1450 2480×2010×1450 2480×2070×1450
Pack dimension(LxW×H)(mm) 1970×1590×1600 2560×2420×1650 2560×2370×1650 2560×2420×1650
Net w eight(KG) 1500 3100 3200 3350
Gross weight(KG) 1750 3000 3450 3600
Operating System & Software
$\"cnc$
Adopting a safe and reliable control system means high efficiency. The Ningbo Gaovan Centerless Grindinn Machine adonts
Siemens Sinumerik's CNC svstem and Simodrive digital servo technolonv The nrerision and fastest evecution eneed of
dinital drivinn are the nuarantee for hinh-nrecision machining,
and the complete performance makes programming for production operation, seing adjustment, tool replacement,
tool trimming, and complex grinding processing easy.

$\"cnc$

Software
1. Application oriented software supports every type of grinding process
2. Built-in comprehensive expert level system
supports cutting in and traversing grinding processes
3. Optional additional software module for optimizing grinding
technology
4. Comprehensive operation and fault information facilitate real-time operation prompts and fault diagnosis
5. User defined screen function, customizable operation screen according to user needs, high operability
6. Machine tools and operational safety assurance functions that comply with EU standards
7. Follow the EU EMC electromagnetic compatibility and low-voltage electrical specifications
8. Shorten setup and adjustment time
throughhelper programs and semi-automatic programs
9. Built-in maintenance menu
10. Dynamic monitoring of CNC servo axis
Grinding Samples
$\"centerless$

FAQ

Q: Are you a manufacturer of trading company?
A: We CCMS Industrial is a manufacturer which has 4000 square meters workshop and 40 sets high precision cnc machining machines.
Q: What kind of products are produced in your factory?
A: We supply Auto parts, Gearbox, Gear housings, Heat exchangers, Cast iron parts, Stainless steel fittings, Aluminum alloy parts.
Besides these, we also support CUSTOMIZATION services, just send us your drawings, we will produce for you.
Q: How long is your delivery time?
A: Generally, it's 10 day if we have stock, or it is 45 days if the products are not in stock.
Q: Could you provide the samples? By free or extra cost?
A: Usually our samples can be offered by free if it is a small parts. Sample fee could be free, but the freight need to be paid by you.
Q: How is your company's payment terms?
A: If the amount is less than USD 10000.00, it needs to be paid by 100%. If the amount is more than USD10000.00, we alloy 30% deposit, the balance is need to be paid before shipment.
We only accept Payment by T/T.

VIEW MORE

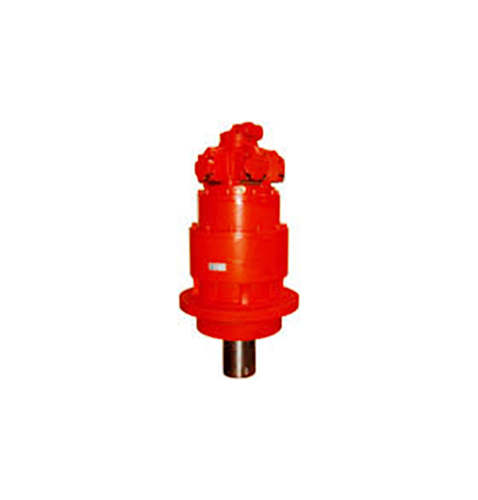

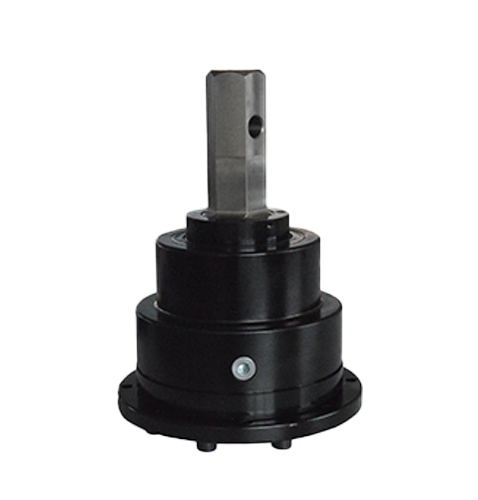

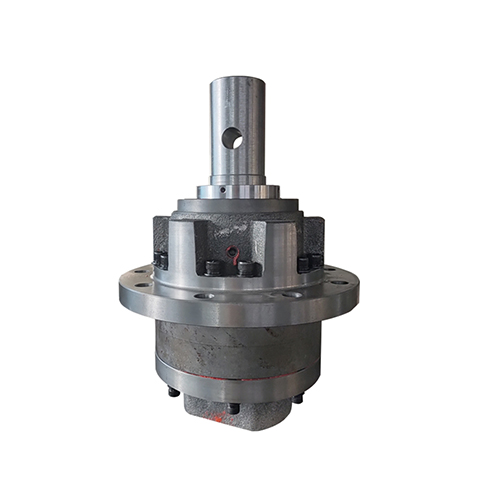

Hydraulic Planetary Auger Drive with Motor

THZ010069T-B Hydraulic Planetary Auger Drive Specification

Item No.:
THZ010069T-B Material: Gray Iron Name: Auger Drive
Reduction Ratio:
99
Max Torque:
10000 Nm
Max Output Speed:
<7< td="">
Hydraulic Motor:
TMD2-100I
Displacement: 11187 ml/r
Max Pressure:
6 Mpa
Unit Weight:
300 kg
Unit Width: 420mm Unit Height:
883mm
OEM & ODM:
Acceptable Color: Red, Black MOQ: 200 pcs

$\"Hydraulic$
$\"Hydraulic$

Application of Rotary Hydraulic Planetary Auger Drives

We at CCMS produce a wide range of hydraulic planetary gear reducer auger drives. We produce auger drives with low speed and high torque, high transmission efficiency, high material strength, and the ability to withstand various environments and high pressures.
In the rapid hole formation operation of building foundation engineering, workers usually use auger construction machinery, which is widely applicable from the industry, such as municipal engineering, high-speed railway, construction engineering, forestry operations, etc. From the nature of the applicable soil layer, it is suitable for the use of auger for the filling soil layer, the clay layer, the sand layer, the frozen soil layer and other equipment can not drill into the formation. The most common application of auger is mainly in loose soil layers, sandy soil layers, and gravel layers. Auger is also divided into many kinds of construction methods, such as grouting replacement method, one-time pile construction method and so on. The main characteristics of auger are short working time, high hole forming efficiency, flexible, low noise, multi-purpose, simple operation and easy to learn.

The auger can effectively improve the working efficiency. The up and down movement of the drill pipe is realized by the drive device to the reducer, which is more conducive to the downward acceleration and rapid drilling. The gear box can slide up and down the slide of the rig frame to ensure the perpendicularity of the drilling hole; The drill pipe is a spiral blade drill pipe, and the soil material can return to the ground along the blade during drilling. Since the power output shaft is a hollow core shaft, the upper mouth of the core shaft can be connected with the cement pouring equipment for cement pouring. Screw drill is a kind of construction machinery suitable for rapid hole formation in building foundation engineering, suitable for power, telecommunications, municipal, high-speed rail, high-speed, highway, construction, oil, forest and other soil layer above the column, pile, bridge pier, forest and other drilling projects, to achieve multi-function characteristics.

$\"Hydraulic$

Features of THZ010069T-B Hydraulic Planetary Auger Drive

1. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works
2. Highly support for Customization(OEM & ODM Services are acceptable here)
3. Easy installation, operation and maintenance and High start-up and working efficiency
4. Free components for replacement within warranty period
5. Various models for wide applications and one year warranty

$\"THZ010069T-B$ $\"THZ010069T-B$ $\"THZ010069T-B$

Production of THZ010069T-B Hydraulic Planetary Auger Drive

The raw material - Gray Iron

Gray cast iron is a cast iron containing flake graphite, which is the most widely used cast iron, accounting for more than 80% of the total production of cast iron. Gray cast iron material has low comprehensive mechanical properties and high compressive strength, which is 3 to 4 times its tensile strength. The vibration absorption capacity is 10 times greater than that of steel, so it is often used to make a stand to withstand vibration. The elastic modulus is low, and the change of wall thickness has great influence on the mechanical properties.

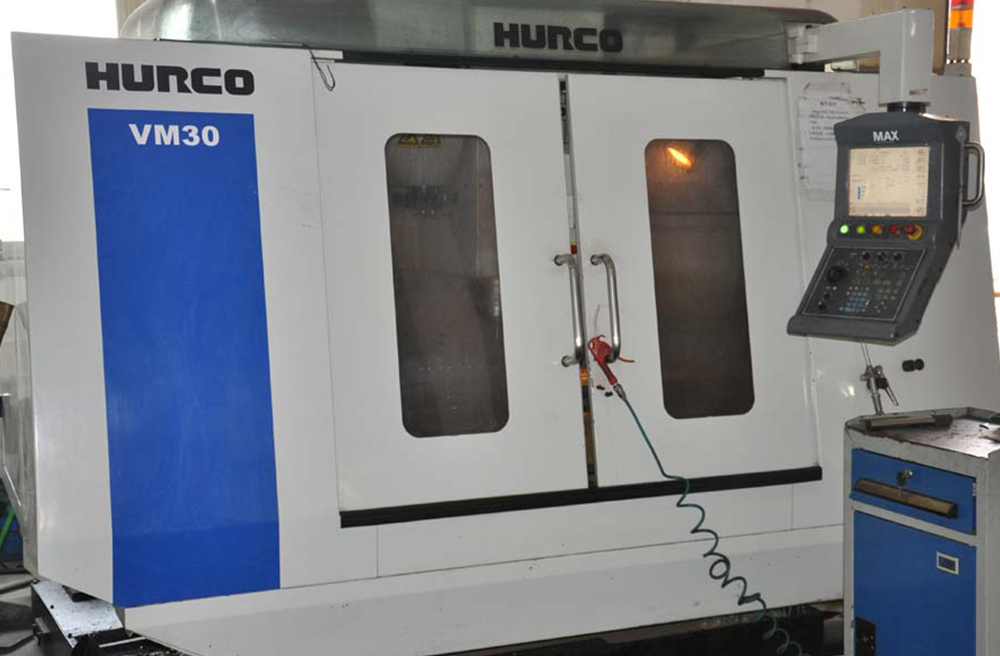

CNC machining Process
